RSC 80

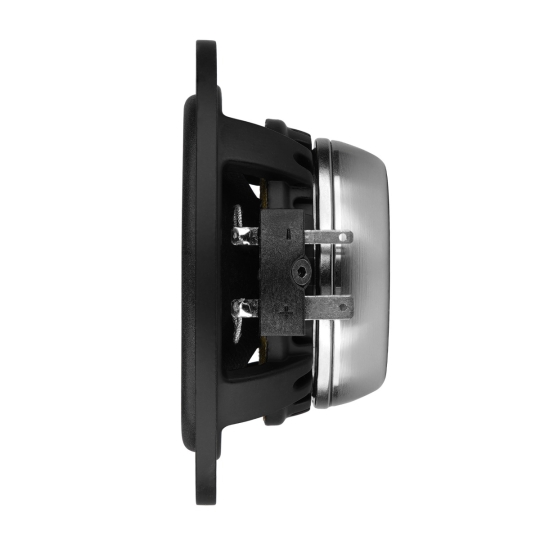

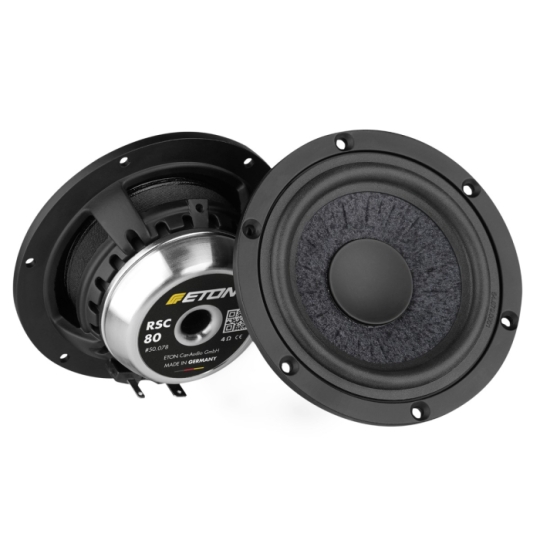

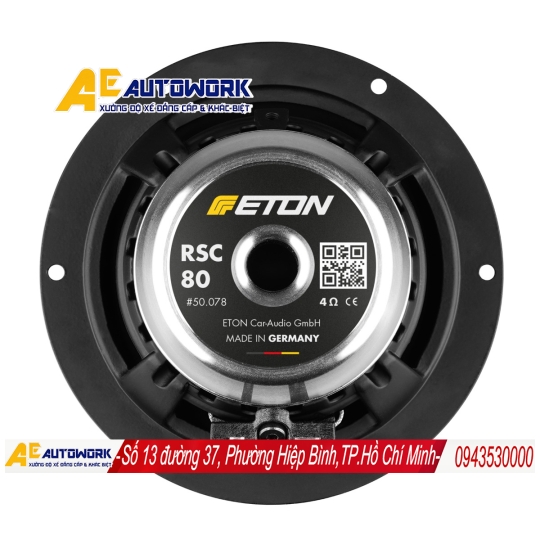

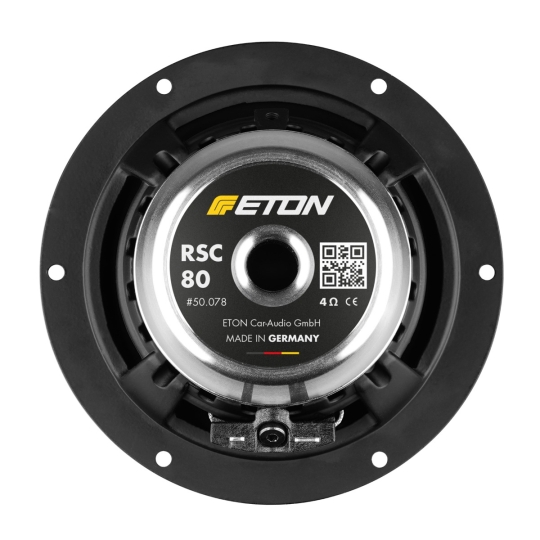

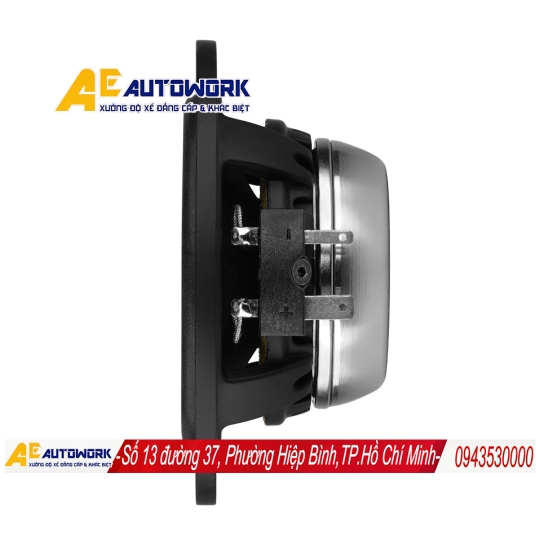

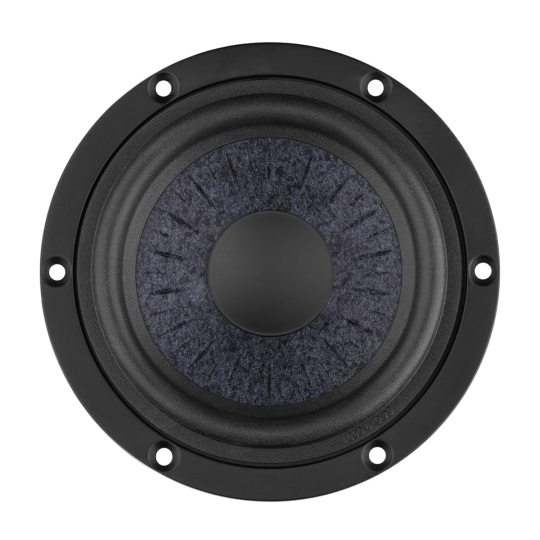

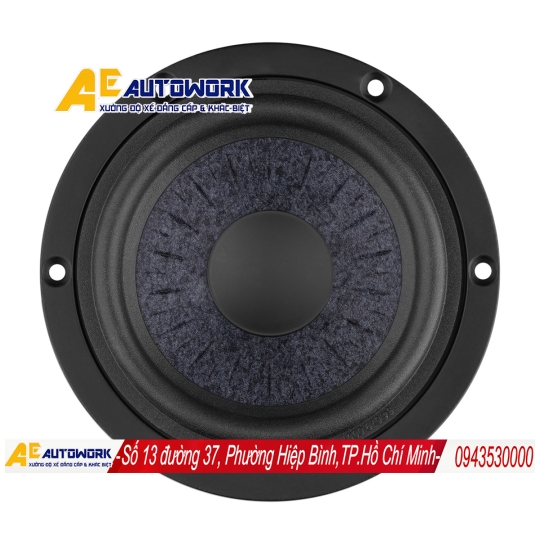

New high-end 80 mm (3") midrange driver in the performance class! Thanks to the newly developed membrane technology, consisting of a rib-reinforced aramid fiber fleece sandwich construction, it is extremely strong and also extremely light. Ideal for powerful, contoured, and finely detailed sound reproduction. Extremely impulse-accurate even with the smallest signals. The open-pored surface of the diaphragm reduces possible interference and ensures a rich and mature sound character, with voices reproduced in a full and contoured manner. The new RSC 80 features a powerful neodymium magnet with a polished base plate with a large pole core bore, a torsion-resistant die-cast aluminum basket, and is easy to integrate into the vehicle thanks to its flat installation dimensions. 20 W RMS power handling and 30 W music power handling with a sound pressure level of 86 dB speak for themselves. Made in Germany.

  • Liên hệ
  • 19
NHẬP THÔNG TIN ĐỂ ĐƯỢC TƯ VẤN

Liên hệ đặt hàng nhanh chóng qua

Newly developed 80 mm (3") high-end midrange driver in the performance class with a newly constructed, rib-reinforced aramid fiber fleece sandwich membrane. High-gloss pole and base plate with large pole core bore for maximum ventilation, powerful yet space-saving neodymium magnet with high efficiency and optimized magnetic field properties. Anodized aluminum dust cap with coil neck docking for additional heat dissipation. Reinforced aluminum die-cast basket in ETON design with additional ventilation. Ideal as a 3-way addition to the RSC 165 or other systems. Flat installation depth of 33.9 mm! 20 W RMS power handling and 30 W music power handling with a sound pressure level of 86 dB and 4 ohms impedance.RSC 80midrange80 mm (3")Impedance4 ΩNominal power (RMS20 WMusic power30 WSound pressure level 86 dBOuter diameter 94 mmInstallation depth33.9 mm

Nominal impedance
Zn
4
Ω
Total moving mass (incl. air mass)
MMD
5.3
g
DC resistance
Re
3.4
Ω
Effective piston area
SD
34
cm2
Voice coil inductance
Le
0.12
mH
Resonance frequency TSP
fr
99.0
Hz
Force factor
BLxl
4.8
Tm
Suspension compliance
CMS
0.49
mm/N
Mechanical Q
QMS
4.15

Xmax mechanical
+/-
3.2
mm
Electrical Q
QES
0.46

Equivalent air vol. of suspension
VAS
0.8
dm3
Total Q
QTS
0.41

Characteristic SPL 1W / 1 m

86
dB
Mechanical resistance
RMS
0.79
kg/s
Rated power

20/30
W
magnet material


Neodymium
voice coil diameter

25
mm
Overall diameter

94
mm
Cutout diameter

77
mm
Frame depth

4
mm
Installation depth

33.9
mm
Screw hole diameter

3.2
mm
Terminal

2.8/4.8
mm
Weight

0.33
kg
technische_daten_impendanz_image
