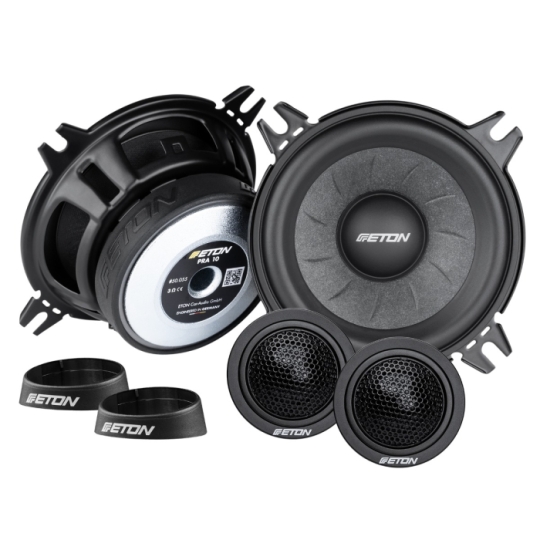

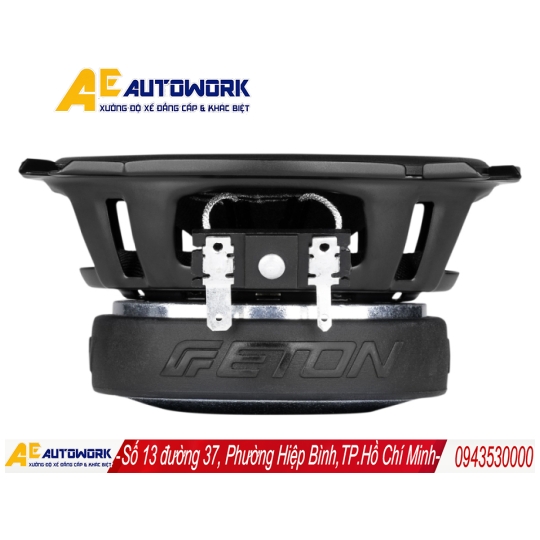

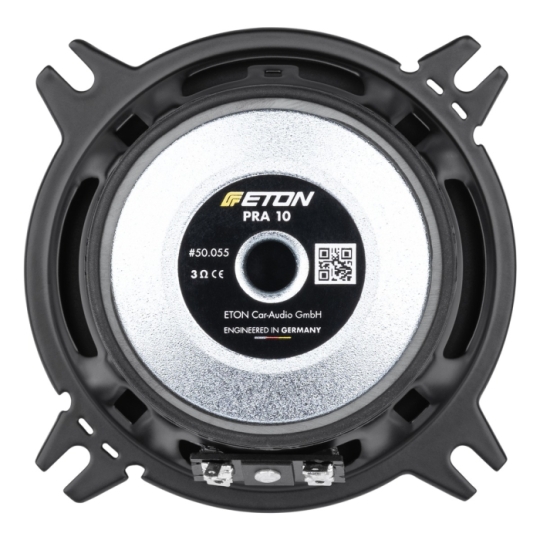

PRA 10

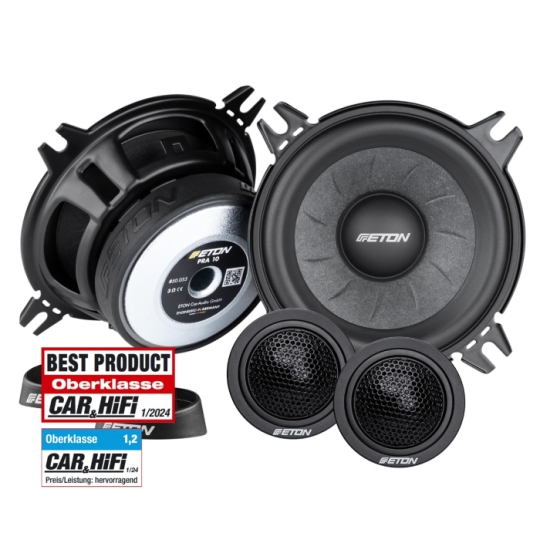

The test winner: Experience top sound in the entry-level class with the newly developed PRA cone technology! The rib-stiffened, paper-glass fiber cone is a real highlight and another ETON milestone in cone development. It is particularly light and also particularly rigid - both basic requirements for a good loudspeaker. Thanks to the rib stiffening, maximum torsional rigidity has been achieved. This ensures ultra-dynamic and powerful bass reproduction, extremely precise and to the point. The PRA series impresses with its warm, full-bodied sound character, rich vocals and incredible spatial depth!

  • Liên hệ
  • 35
NHẬP THÔNG TIN ĐỂ ĐƯỢC TƯ VẤN

Liên hệ đặt hàng nhanh chóng qua

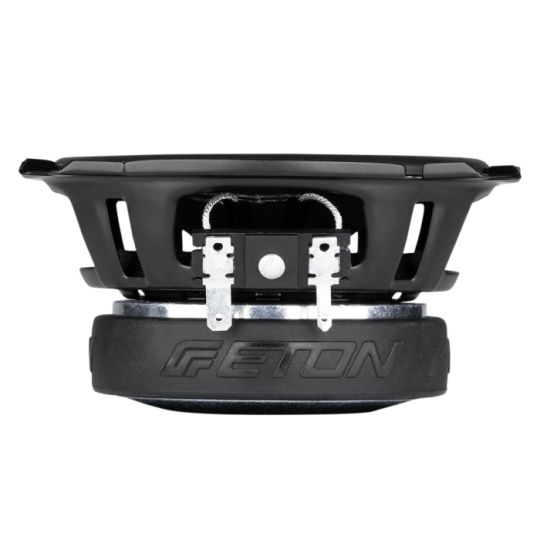

100 mm (4") bass/midrange driver with ribbed paper-fiberglass cone manufactured using a special production process. Powerful ferrite magnet with large core hole for best possible cooling. Stiffened, powder-coated metal basket in double strut design with extra ventilation openings. Heavy-duty 3 ohms voice coil for maximum performance even without an additional amplifier, directly on the series radio / head unit. 25 mm (1") aluminum dome tweeter with fabric surround for finest details, incl. high-quality 12 dB cable crossover, surface-mounted and built-in housing with swivel & swivel function. 50 W RMS rated power handling, 80 W music power handling with a characteristic sound pressure of 90 dB (2.83V/1m). 100 / 124 mm outer diameter and 91 mm cut-out diameter. Low installation depth of 45 mm. Engineered in Germany.PRA 10Tweeter25 mm (1")midrange100 mm (4")Impedance3 ΩNominal power (RMS50 WMusic power80 WSound pressure level 90 dBOuter diameter 100/124 mmInstallation depth45 mm

Nominal impedance
Zn
3
Ω
Total moving mass (incl. air mass)
MMD
5.9
g
DC resistance
Re
2.6
Ω
Effective piston area
SD
50
cm2
Voice coil inductance
Le
0.11
mH
Resonance frequency TSP
fr
96
Hz
Force factor
BLxl
3.4
Tm
Suspension compliance
CMS
0.46
mm/N
Mechanical Q
QMS
3.1

Xmax mechanical
+/-
6.9
mm
Electrical Q
QES
0.83

Equivalent air vol. of suspension
VAS
1.7
dm3
Total Q
QTS
0.65

Characteristic SPL 1W / 1 m

86
dB
Mechanical resistance
RMS
1.15
kg/s
Rated power

50/80
W
magnet material


Ferrite
voice coil diameter

25
mm
Overall diameter

100/124
mm
Cutout diameter
91

mm
Frame depth

3.45
mm
Installation depth

45
mm
Screw hole diameter

100-124
mm
Terminal

2.8/4.8
mm
Weight

0.55
kg
technische_daten_impendanz_image
