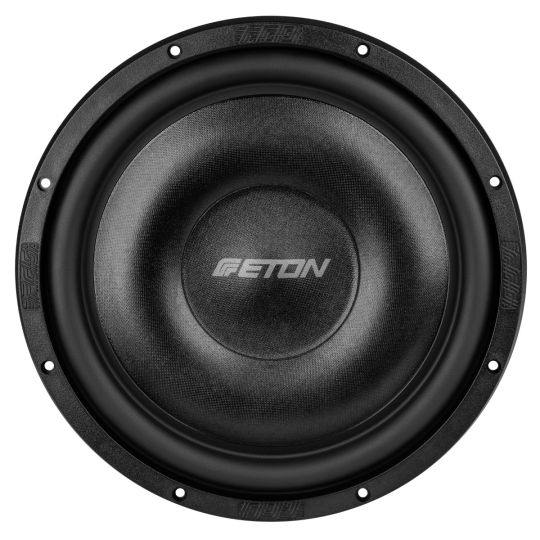

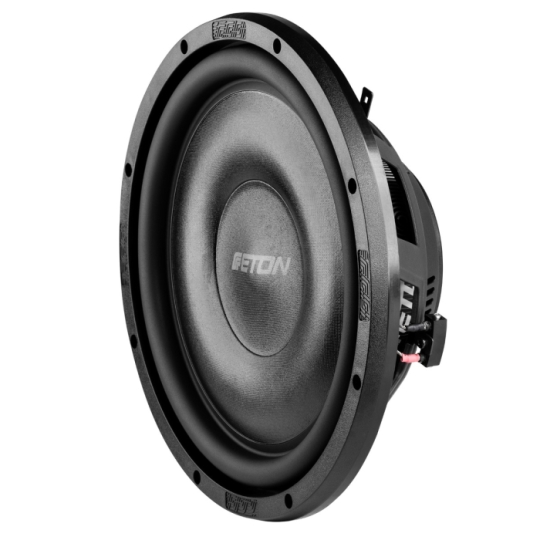

PW 12 FLAT

Cost-effective, top performance and easy to install - the new PW FLAT series combines so much! Convince yourself of the brutal bass, level stability and dynamics thanks to the powerful ferrite magnet with large pole core bore and heavy-duty 2 x 2 Ω voice coil. The PW FLAT series features specially designed, flat cone constructions made of pressed and coated paper, ultra-stiff and light at the same time. Long excursion rubber surrounds for maximum excursion and a special design in terms of centering and strand guidance as well as an extremely torsion-resistant metal basket. All this saves space and delivers performance across the board!

  • Liên hệ
  • 34
NHẬP THÔNG TIN ĐỂ ĐƯỢC TƯ VẤN

Liên hệ đặt hàng nhanh chóng qua

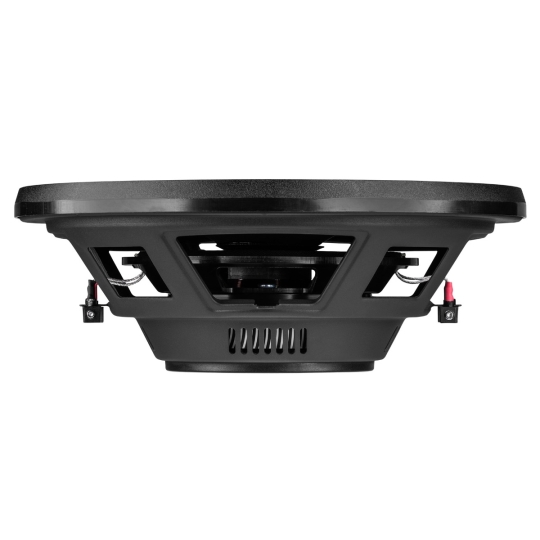

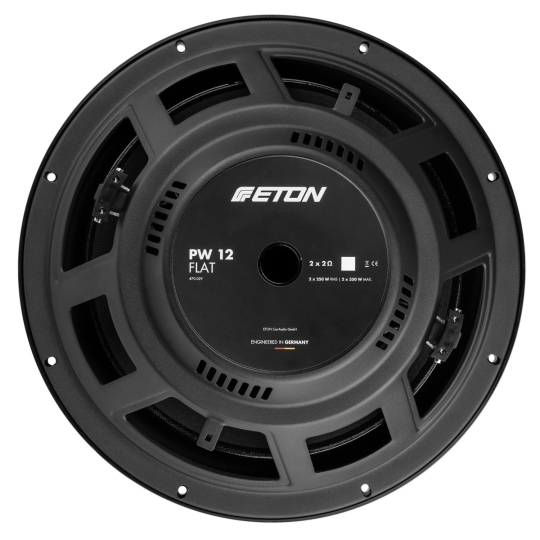

300 mm (12") flat subwoofer with pressed, air-dried paper cone. Torsion-resistant, powder-coated metal basket, with special design for extremely flat installation dimensions. Heavy-duty 2 x 2 Ω double voice coil with ventilation. Extremely strong ferrite magnet with large pole core hole and additional ventilation holes for maximum performance! High-quality screw connection terminals. 2 x 250 W RMS rated power handling. 2 x 350 W music power handling. 86.5 dB characteristic sound pressure. Outer diameter 316 mm. Installation depth 93 mm. Cut-out diameter 280 mm. Engineered in Germany.PW 12 FLATImpedance2x2 ΩNominal power (RMS500 WMusic power700 WSound pressure level 86.5 dBOuter diameter 316 mmInstallation depth93 mm
Nominal impedance
Zn
2x2
Ω
Total moving mass (incl. air mass)
MMD
213.0
g
DC resistance
Re
3.6
Ω
Effective piston area
SD
510
cm2
Voice coil inductance
Le
3.05
mH
Resonance frequency TSP
fr
37.6
Hz
Force factor
BLxl
18.60
Tm
Suspension compliance
CMS
0.08
mm/N
Mechanical Q
QMS
8.75
Xmax mechanical
+/-
30.0
mm
Electrical Q
QES
0.56
Equivalent air vol. of suspension
VAS
31.02
dm3
Total Q
QTS
0.56
Characteristic SPL 1W / 1 m
86.5
dB
Mechanical resistance
RMS
5.10
kg/s
Rated power
500/700
W
magnet material
-
Ferrit
-
voice coil diameter
50
mm
Overall diameter
317
mm
Cutout diameter
282
mm
Installation depth
95
mm
Weight
4.46
kg
technische_daten_impendanz_image
