PW 12

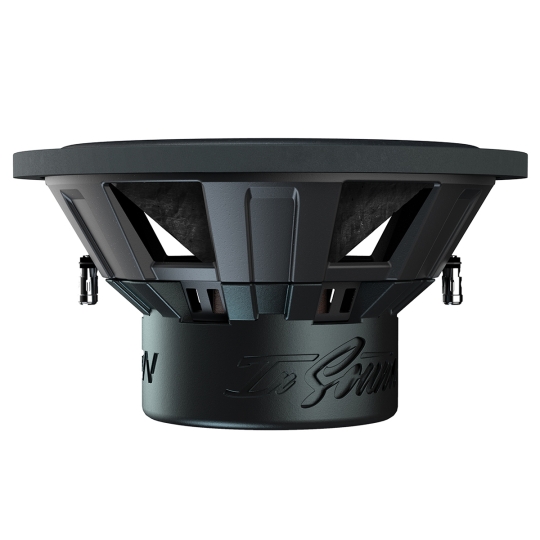

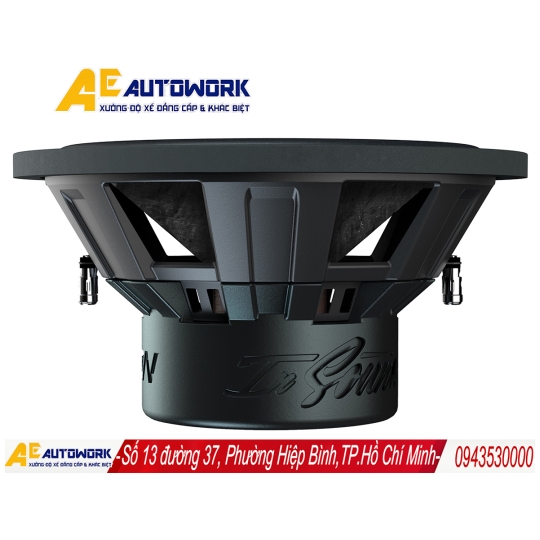

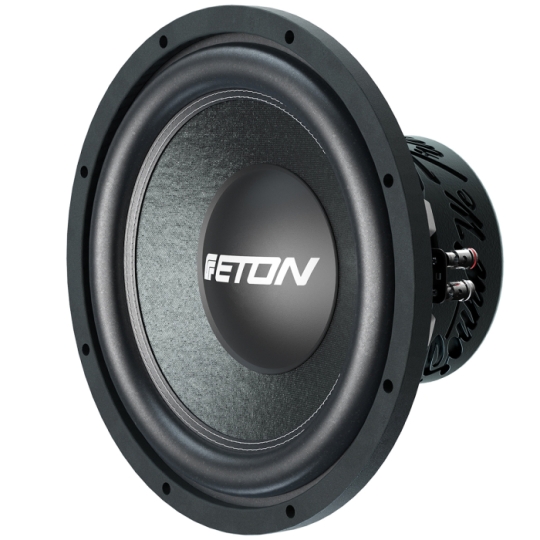

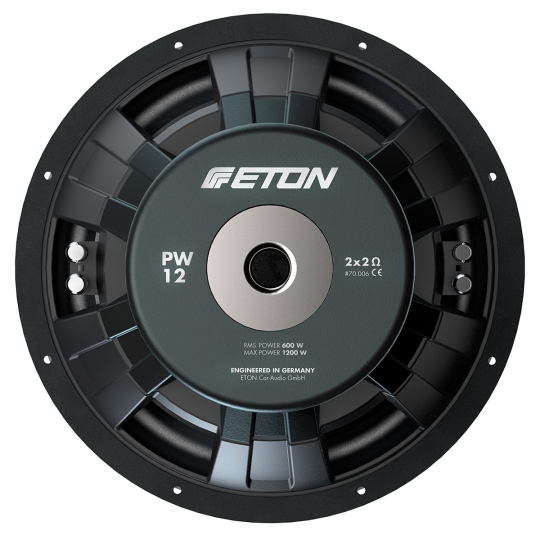

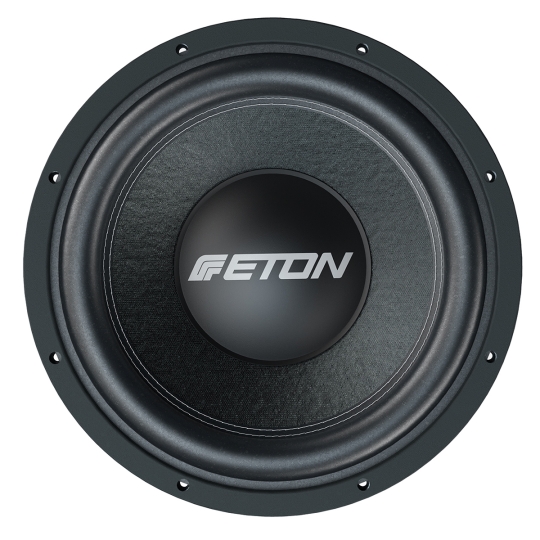

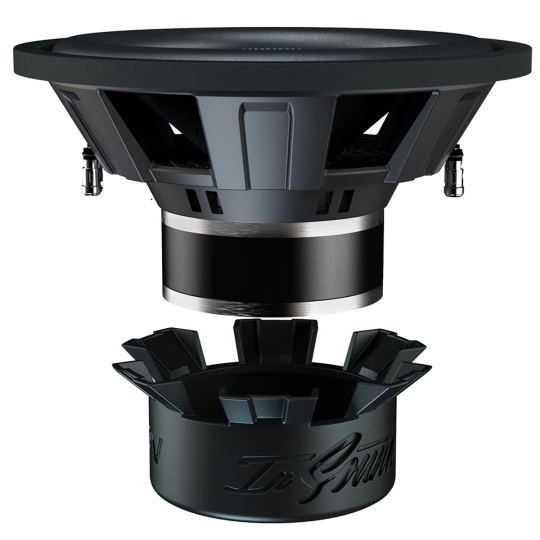

New developed 300 mm (12") subwoofer with pressed, stiffened and coated paper diaphragm, long excursion surround and extremely strong ferrite magnets with large core bore for optimum ventilation. The newly developed metal basket has been 3D deformed for optimum rigidity. The large 2 x 2 ohm dual voice coil is extremely resilient, 600 W RMS rated power handling, 1200 W music power handling and a characteristic sound pressure of 87 dB speak for themselves. The 7 kg chassis is protected by a specially developed silicone protective cap. The PW series stands for power - hard kick bass and extreme low frequency response, a subwoofer series that has it all! Here, everything is just right - top workmanship and a price performance that is unbeaten! Engineered in Germany.

  • Liên hệ
  • 31
NHẬP THÔNG TIN ĐỂ ĐƯỢC TƯ VẤN

Liên hệ đặt hàng nhanh chóng qua

PW stands for POWER - of which there is more than enough. The new powerhouse series in the entry-level class. Performance full - sound - dynamics - level - depth. The 2 x 2 ohms dual voice coil chassis convinces all along the line, the scooped, stiffened and pressed paper cone produces a powerful, warm and powerful sound character. Dynamic punches as well as extreme low bass passages are no problem! Due to the long-stroke foam surrounding in combination with the extremely powerful ferrite magnet, rich sound pressures can be generated. The high-quality iron parts with the large core bore provide the necessary cooling. 600 W RMS and 1200 W music power handling with 87 dB characteristic sound pressure, valuable clamp terminals, outer diameter 326 mm, installation depth 152 mm, cut-out diameter 286 mm, 7 kg weight. PW 12Impedance2x2 Ω Nominal power (RMS600 WMusic power1200 WSound pressure level 87 dBOuter diameter 326 mmInstallation depth152 mm
Nominal impedance
Zn
2x2
Ω
Total moving mass (incl. air mass)
MMD
208.0
g
DC resistance
Re
3.8
Ω
Effective piston area
SD
502
cm2
Voice coil inductance
Le
1.49
mH
Resonance frequency TSP
fr
31.6
Hz
Force factor
BLxl
17.91
Tm
Suspension compliance
CMS
0.12
mm/N
Mechanical Q
QMS
5.73
Xmax mechanical
+/-
42
mm
Electrical Q
QES
0.52
Equivalent air vol. of suspension
VAS
43.72
dm3
Total Q
QTS
0.46
Characteristic SPL 1W / 1 m
87
dB
Mechanical resistance
RMS
7.20
kg/s
Rated power
600/1200
W
magnet material
-
Ferrit
-
voice coil diameter
63
mm
Overall diameter
326
mm
Cutout diameter
286
mm
Installation depth
152
mm
Weight
7.0
kg
technische_daten_impendanz_image
