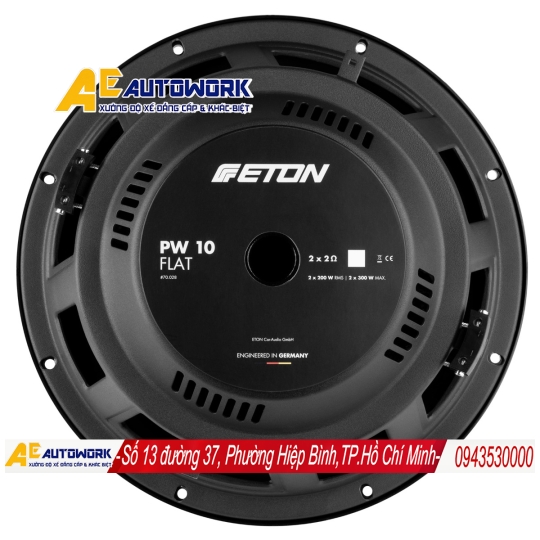

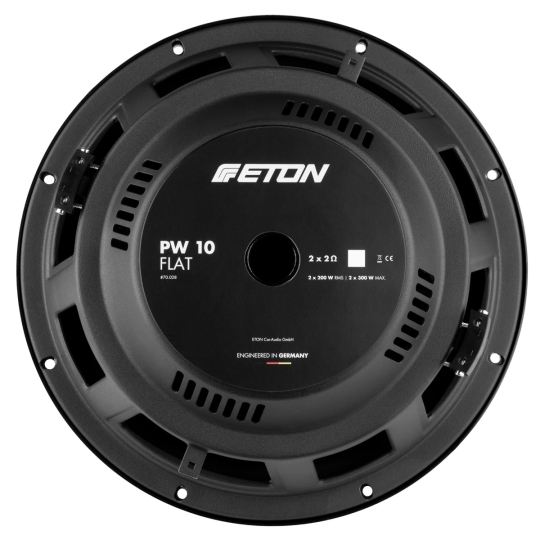

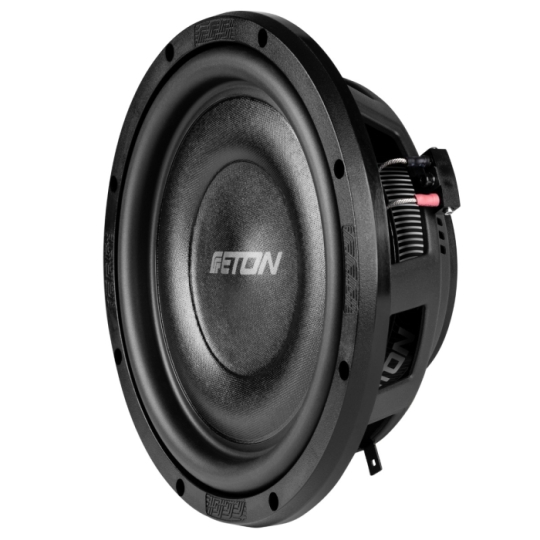

PW 10 FLAT

Cost-effective, top performance and easy to install - the new PW FLAT series combines so much! Convince yourself of the brutal bass, level stability and dynamics thanks to the powerful ferrite magnet with large pole core bore and heavy-duty 2 x 2 Ω voice coil. The PW FLAT series features specially designed, flat cone constructions made of pressed and coated paper, ultra-stiff and light at the same time. Long excursion rubber surrounds for maximum excursion and a special design in terms of centering and strand guidance as well as an extremely torsion-resistant metal basket. All this saves space and delivers performance across the board!

  • Liên hệ
  • 29
NHẬP THÔNG TIN ĐỂ ĐƯỢC TƯ VẤN

Liên hệ đặt hàng nhanh chóng qua

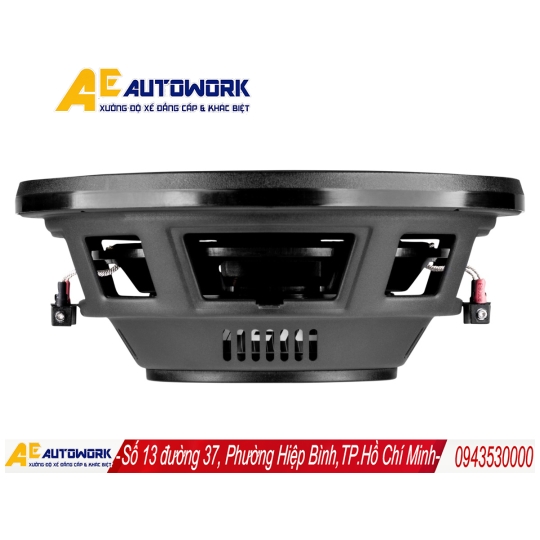

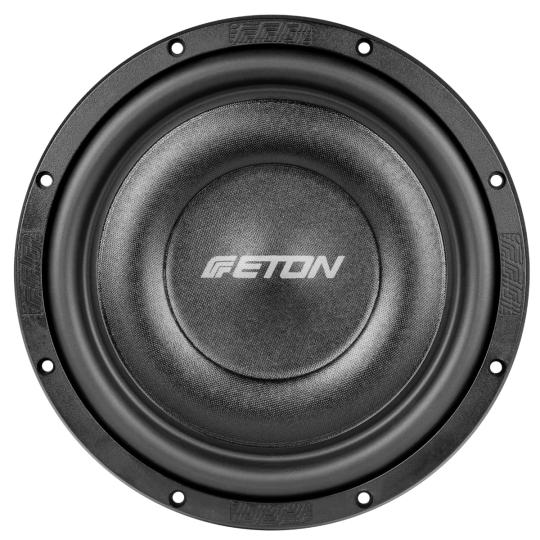

250 mm (10") flat subwoofer with pressed, air-dried paper cone. Torsion-resistant, powder-coated metal basket, with special design for extremely flat installation dimensions. Heavy-duty 2 x 2 Ω double voice coil with ventilation. Extremely strong ferrite magnet with large pole core hole and additional ventilation holes for maximum performance! High-quality screw connection terminals. 2 x 200 W RMS rated power handling. 2 x 300 W music power handling. 84 dB characteristic sound pressure. Outer diameter 261 mm. Installation depth 84 mm. Cut-out diameter 234 mm. Engineered in Germany.PW 10 FLATImpedance2x2 ΩNominal power (RMS400 WMusic power600 WSound pressure level 84 dBOuter diameter 261 mmInstallation depth84 mm
Nominal impedance
Zn
2x2
Ω
Total moving mass (incl. air mass)
MMD
140.8
g
DC resistance
Re
3.6
Ω
Effective piston area
SD
346
cm2
Voice coil inductance
Le
2.09
mH
Resonance frequency TSP
fr
39.9
Hz
Force factor
BLxl
13.39
Tm
Suspension compliance
CMS
0.11
mm/N
Mechanical Q
QMS
5.95
Xmax mechanical
+/-
26.0
mm
Electrical Q
QES
0.77
Equivalent air vol. of suspension
VAS
19.15
dm3
Total Q
QTS
0.69
Characteristic SPL 1W / 1 m
84
dB
Mechanical resistance
RMS
6.66
kg/s
Rated power
400/600
W
magnet material
-
Ferrit
-
voice coil diameter
50
mm
Overall diameter
261
mm
Cutout diameter
238
mm
Installation depth
85
mm
Weight
4.1
kg
technische_daten_impendanz_image
