PRW 50

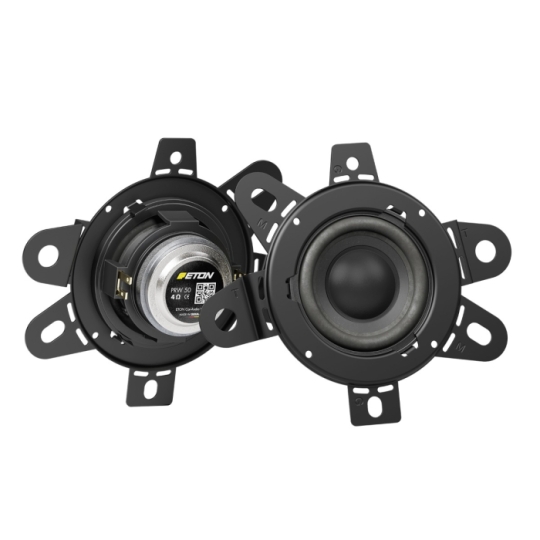

With the newly developed PRW 50, there is finally a suitable sound upgrade for various Mercedes-Benz, Asian and U.S. American vehicle models. The modern 50 mm (2") full-range speaker has been fitted with a 19 mm voice coil and has a paper cone in a glass-fiber reinforced polyamide basket - ideal for universal installation thanks to its small installation dimensions. The set includes two powder-coated metal brackets that enable plug & play installation in various Mercedes-Benz, Toyota and G.M. General Motors models. The PRW 50 is also suitable for standard 4-point mounting - as the retaining ears and mounting points can be easily adjusted.

  • Liên hệ
  • 22
NHẬP THÔNG TIN ĐỂ ĐƯỢC TƯ VẤN

Liên hệ đặt hàng nhanh chóng qua

50 mm (2") full-range speaker with paper cone, resilient 19 mm voice coil and easy-to-install plastic basket with special, powder-coated metal adapter for simple plug & play installation and 4-point mounting. Powerful neodymium magnet, 4 Ohm impedance, rated & music power handling 15 W (RMS) / 25 W. Characteristic sound pressure 85 dB. Outer diameter 58 mm, cut-out diameter 55 mm, installation depth 23.1 mm. Development and production Made in Germany.PRW 50midrange50 mm (2")Impedance4 ΩNominal power (RMS15 WMusic power25 WSound pressure level 85 dBOuter diameter 58 mmInstallation depth23.1 mm

Nominal impedance
Zn
4
Ω
Total moving mass (incl. air mass)
MMD
1.40
g
DC resistance
Re
3.5
Ω
Effective piston area
SD
15.2
cm2
Voice coil inductance
Le
0.07
mH
Resonance frequency TSP
fr
202
Hz
Force factor
BLxl
3.1
Tm
Suspension compliance
CMS
0.43
mm/N
Mechanical Q
QMS
3.98

Xmax mechanical
+/-
3.2
mm
Electrical Q
QES
0.69

Equivalent air vol. of suspension
VAS
0.14
dm3
Total Q
QTS
0.59

Characteristic SPL 1W / 1 m

85
dB
Mechanical resistance
RMS
0.46
kg/s
Rated power

15/25
W
magnet material


Neodymium
voice coil diameter

19
mm
Overall diameter

58
mm
Cutout diameter

55
mm
Frame depth


3.5
Installation depth

23.1
mm
Screw hole diameter
4x
2.7
mm
Terminal

4.8/2.8
mm
Weight

0.15
kg
technische_daten_impendanz_image
