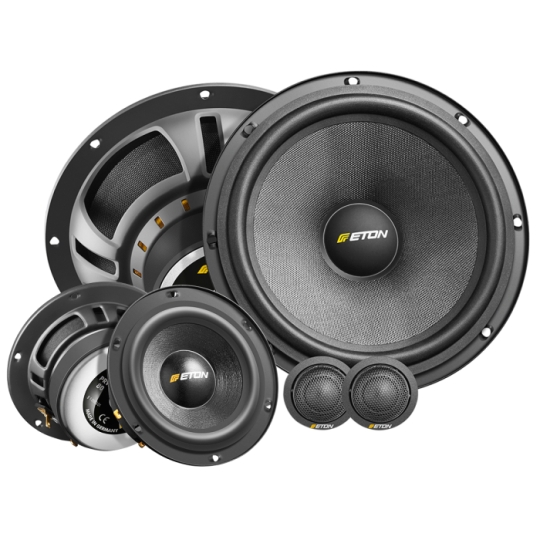

PRS 165.3

Partially active 3-way PRS system with strong ferrite magnet and powder-coated metal basket. A stiff fiberglass paper cone provides punchy, accurate bass. Supported by an 80 mm paper cone midrange driver with strong ferrite drive and the 19 mm fabric tweeters, the PRS 165.3 provides clear highs and dynamic sounding mids. The high efficiency and the unobtrusive, silky sound, make this system unique in its class!

  • Liên hệ
  • 19
NHẬP THÔNG TIN ĐỂ ĐƯỢC TƯ VẤN

Liên hệ đặt hàng nhanh chóng qua

165 mm (6.5 inch) 3-way component system with fiberglass diaphragm. 19 mm fabric tweeter with cabinet crossovers. 80 mm (3 inch) coated paper midrange driver, Powder coated metal basket with strong ferrite magnet, 4 ohm impedance, 70 W RMS, 100 W music power handling, 92 dB characteristic sound pressure, includes tweeter insert & setup accessories. Made in Germany.PRS 165.3Tweeter19 mm (3/4")midrange80 mm (3")Bass / midrange165 mm (6.5")Impedance4 ΩNominal power (RMS70 WMusic power100 WSound pressure level 92 dBOuter diameter 165 mmInstallation depth65.5 mm

Nominal impedance
Zn
4
Ω
Total moving mass (incl. air mass)
MMD
12.6
g
DC resistance
Re
3.3
Ω
Effective piston area
SD
137
cm2
Voice coil inductance
Le
0.38
mH
Resonance frequency TSP
fr
61
Hz
Force factor
BLxl
4.1
Tm
Suspension compliance
CMS
0.56
mm/N
Mechanical Q
QMS
4.48

Xmax mechanical
+/-
9.0
mm
Electrical Q
QES
0.83

Equivalent air vol. of suspension
VAS
14.8
dm3
Total Q
QTS
0.70

Characteristic SPL 1W / 1 m

92
dB
Mechanical resistance
RMS
1.18
kg/s
Rated power

70/100
W
magnet material


Ferrit
voice coil diameter

25
mm
Overall diameter

165
mm
Cutout diameter

142
mm
Frame depth

3.2
mm
Installation depth

65.5
mm
Screw hole diameter

4.6
mm
Terminal

2.8/4.8
mm
Weight

0.72
kg
technische_daten_impendanz_image
