POW 16+

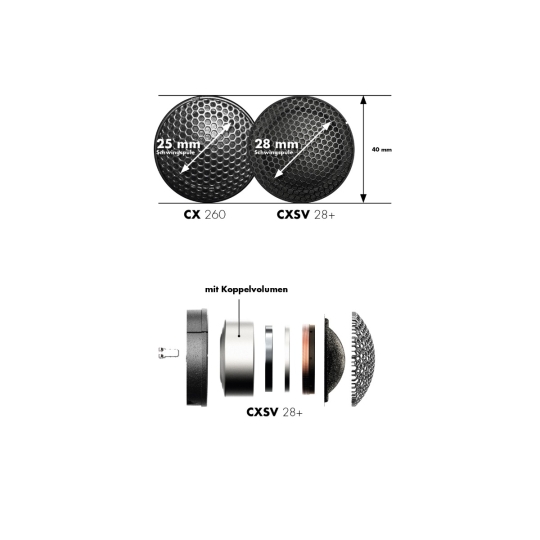

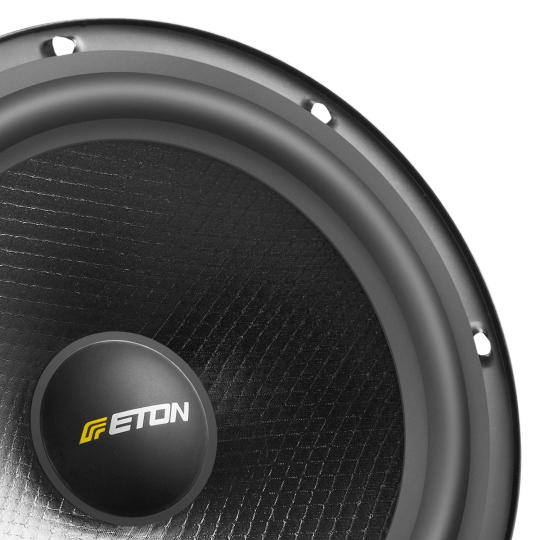

The legendary POW in the 3rd stage of development, now with the "+" of extra performance in the high frequency range. The revised POW 16+ convinces with its solid and simple construction: a powder-coated and stiffened metal basket with large ventilation openings, a strong ferrite magnet with gloss-turned base plate and the POW-specific fiberglass / paper diaphragm with the high-efficiency 3 Ohm voice coil winding provide the typical, crisp and fine-resolution sound character. The newly developed 28 mm fabric tweeters with coupling volume and reverberation diffusion in the small installation dimension of a 25 mm tweeter complete the new POW+. The energy gained by the large voice coil in the lower tweeter is convincing, a lower crossover frequency and thus a better fusion of mid-bass and tweeter are the result. Silky, fine-drawing treble with an incredible fullness.

  • Liên hệ
  • 41
NHẬP THÔNG TIN ĐỂ ĐƯỢC TƯ VẤN

Liên hệ đặt hàng nhanh chóng qua

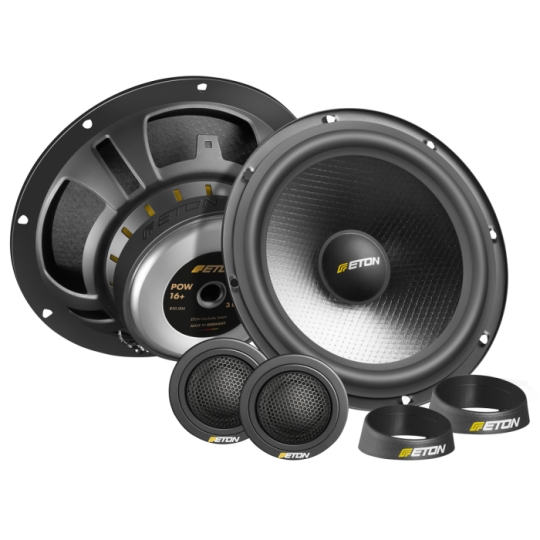

POW 16+ - 165 mm (6.5") 2-way component system with 28 mm (1 1/8") fabric tweeter in compact installation dimension with coupling volume. Fiberglass-reinforced 2-ply paper cone with strong ferrite magnet and gloss-turned base plate with large core bore. Stiffened, powder-coated metal basket with ventilation and high-quality connection terminals. Tweeter surface-mount and flush-mount enclosures with swivel & pivot function, including tweeter cable crossover, 3 ohm impedance, rated/music power handling 70 W RMS/100 W, 94.3 dB efficiency at 2.83V. Development and manufacture Made in Germany.POW 16+Tweeter28 mm (1 1/8")Bass / midrange165 mm (6.5")Impedance3 ΩNominal power (RMS70 WMusic power100 WSound pressure level 94 dBOuter diameter 165 mmInstallation depth65 mm

Nominal impedance
Zn
4
Ω
Total moving mass (incl. air mass)
MMD
12.8
g
DC resistance
Re
2.5
Ω
Effective piston area
SD
137
cm2
Voice coil inductance
Le
0.32
mH
Resonance frequency TSP
fr
69
Hz
Force factor
BLxl
4.3
Tm
Suspension compliance
CMS
0.41
mm/N
Mechanical Q
QMS
4.39

Xmax mechanical
+/-
9.0
mm
Electrical Q
QES
0.67

Equivalent air vol. of suspension
VAS
11.0
dm3
Total Q
QTS
0.58

Characteristic SPL 1W / 1 m

94
dB
Mechanical resistance
RMS
1.38
kg/s
Rated power

70/100
W
magnet material


Ferrit
voice coil diameter

25
mm
Overall diameter

165
mm
Cutout diameter

142
mm
Frame depth

3.3
mm
Installation depth

65
mm
Screw hole diameter

4.6
mm
Terminal

2.8/4.8
mm
Weight

0.96
kg
technische_daten_impendanz_image
