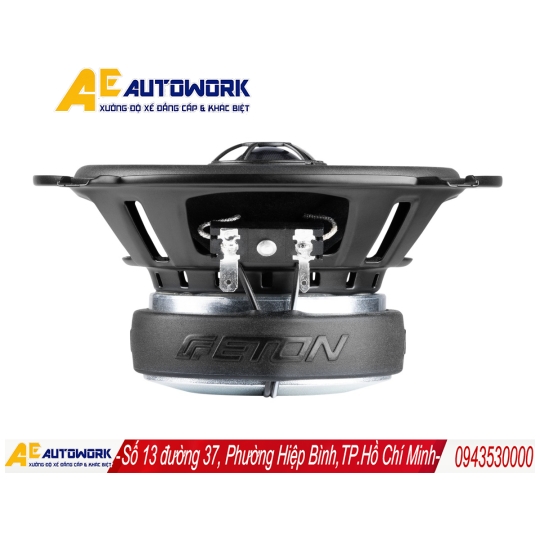

PFX 13

The new PFX coaxial systems impress with their tonal balance and crisp bass reproduction. The 2-way coaxial sound systems are particularly easy to install and can be used as a front system or as a rear system for “rear fill”. The bass/midrange drivers feature the typical ETON powder-coated metal basket in a torsion-resistant, flow-optimized double strut design with large ventilation openings. A powerful ferrite magnet provides power and dynamics. Thanks to 3 ohms technology, the coaxial speakers are extremely efficient - even with a standard radio / head unit, without an additional amplifier. Top sound in the entry-level class, thanks to rib-reinforced paper-glass fiber mixture for a cone that packs a punch. The membrane, which is manufactured using a complex manufacturing process, is not only extremely torsion-resistant, it is also particularly light - the best prerequisites for an impressive sound performance with powerful bass, dynamic and melodious. In combination with the integrated 19 mm (3/4") fabric dome tweeters, a perfect unit is created for outstanding sound - silky smooth and with the necessary brilliance and fine dynamics. The open design of the tweeter's touch protection ensures maximum sound transmission - especially behind original grilles. Tuned for the long haul with the necessary fun factor, the ideal coaxial speakers for your car with the best price-performance ratio!

  • Liên hệ
  • 18
NHẬP THÔNG TIN ĐỂ ĐƯỢC TƯ VẤN

Liên hệ đặt hàng nhanh chóng qua

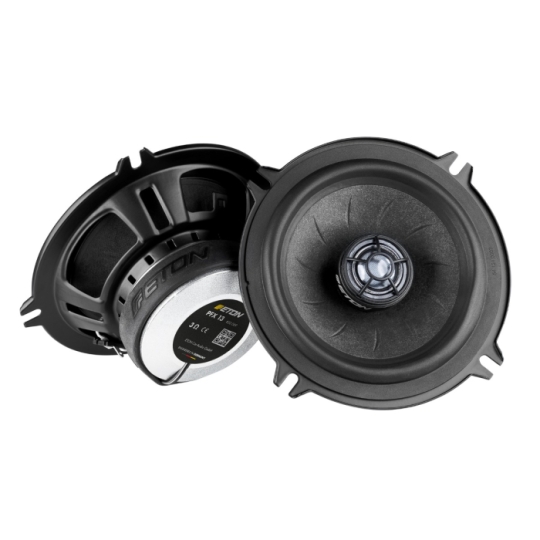

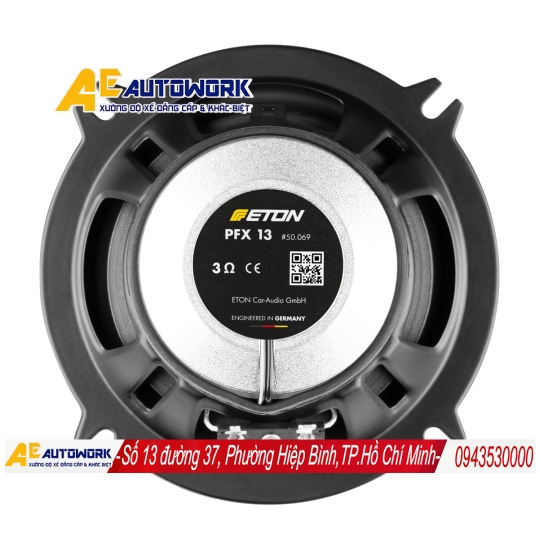

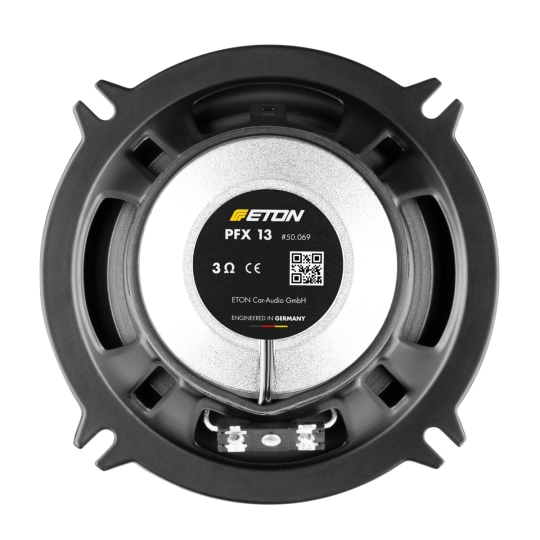

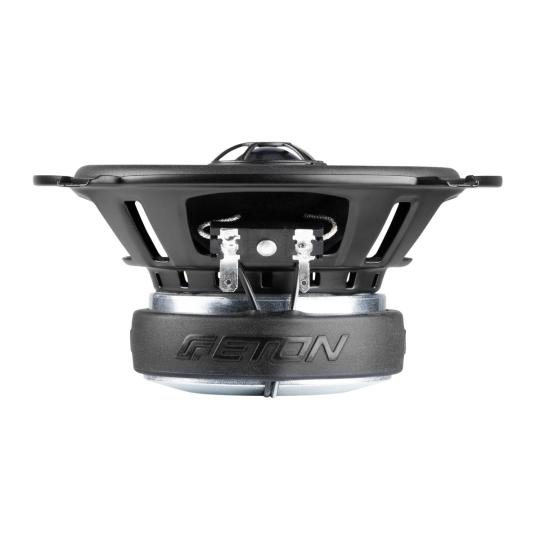

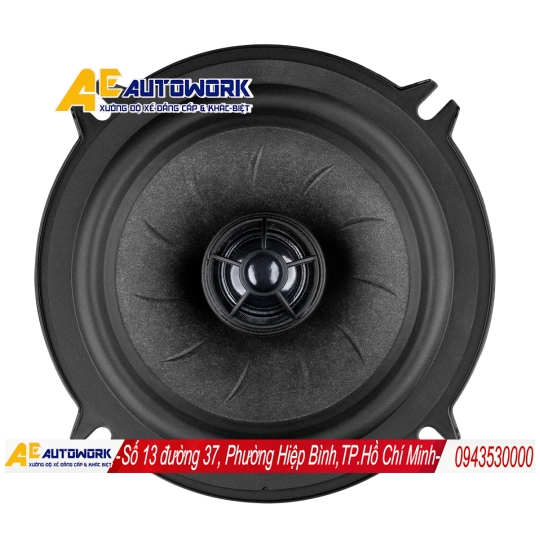

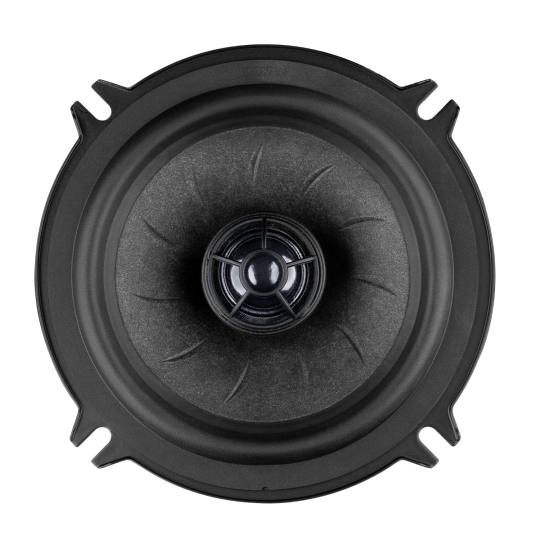

130 mm (5“) coaxial loudspeaker system with integrated 19 mm (3/4”) fabric dome tweeter with permeable plastic touch protection for maximum sound transmission. Rib-stiffened glass fiber paper cone technology for particularly powerful and contoured bass reproduction, dynamic and to the point. Powder-coated metal basket in the typical ETON double strut design with additional ventilation openings and reinforcements as well as 4-point slotted hole mounting. Powerful ferrite magnet with 3 ohms impedance voice coil - for maximum efficiency even without an additional amplifier. Rated power handling: 60 W RMS, music power handling 90 W, impedance 3 ohms, characteristic sound pressure 88 dB, outer diameter 132-147 mm, installation diameter 113 mm, installation depth 57 mm. With integrated high-quality tweeter capacitor. Engineered in Germany.PFX 13Tweeter19 mm (3/4")Bass / midrange130 mm (5")Impedance3 ΩNominal power (RMS60 WMusic power90 WSound pressure level 88 dBOuter diameter 132-147 mmInstallation depth57 mm

Nominal impedance
Zn
3
Ω
Total moving mass (incl. air mass)
MMD
7.80
g
DC resistance
Re
2.6
Ω
Effective piston area
SD
80
cm2
Voice coil inductance
Le
0.14
mH
Resonance frequency TSP
fr
74
Hz
Force factor
BLxl
3.9
Tm
Suspension compliance
CMS
0.59
mm/N
Mechanical Q
QMS
4.14

Xmax mechanical
+/-
7.5
mm
Electrical Q
QES
0.63

Equivalent air vol. of suspension
VAS
5.3
dm3
Total Q
QTS
0.55

Characteristic SPL 1W / 1 m

88
dB
Mechanical resistance
RMS
0.88
kg/s
Rated power

60/90
W
magnet material


Ferrit
voice coil diameter

25
mm
Overall diameter

132–147
mm
Cutout diameter

113
mm
Frame depth

3.25
mm
Installation depth

57
mm
Screw hole diameter

5.2
mm
Terminal

2.8/4.8
mm
Weight

0.64
kg
technische_daten_impendanz_image
