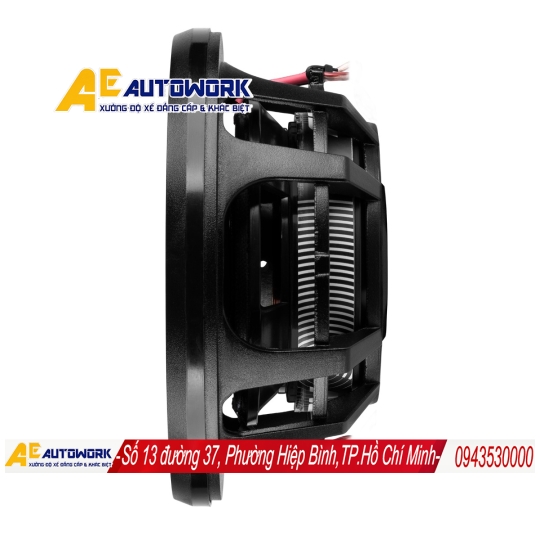

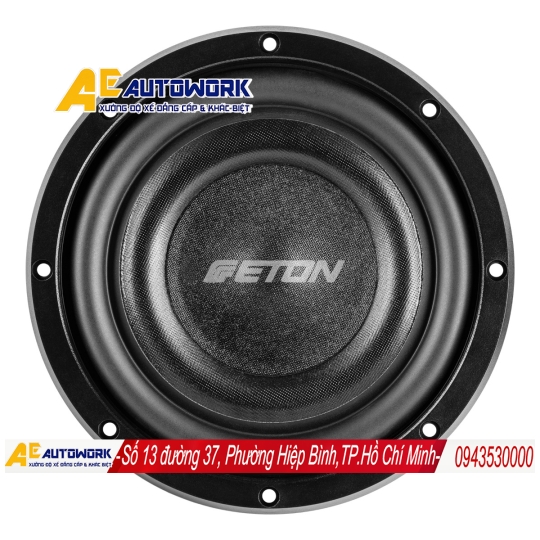

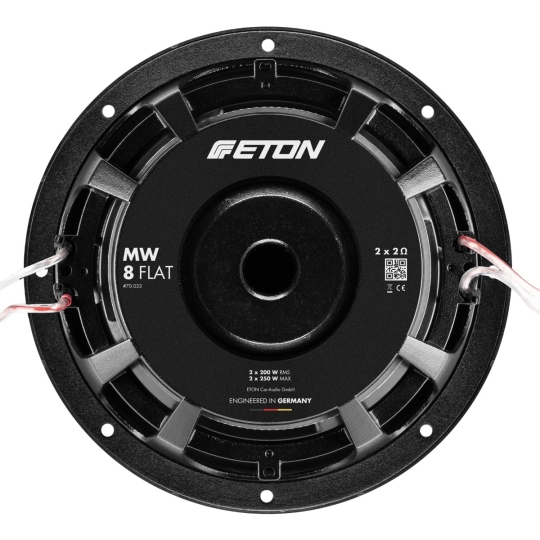

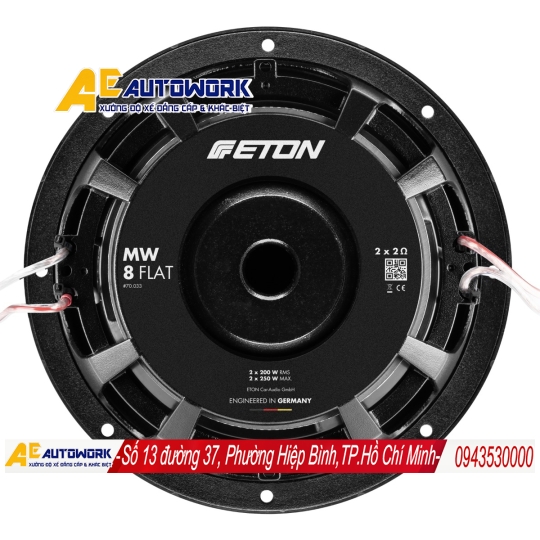

MW 8 Flat

Flat, flatter – FLAT subwoofers! The new ETON MW FLAT series scores with its particularly flat dimensions – rich bass performance and yet extremely flat. Ideal for all spare wheel well subwoofers or enclosures that need to be flat. Extremely powerful ferrite magnets and large, heavy-duty 2 x 2 Ω voice coils with pressed paper cones and long-throw surrounds in a special design. Extremely torsion-resistant die-cast aluminum baskets and soldered wires. One of the most powerful flat subwoofers in its class!

  • Liên hệ
  • 32
NHẬP THÔNG TIN ĐỂ ĐƯỢC TƯ VẤN

Liên hệ đặt hàng nhanh chóng qua

200 mm (8") flat subwoofer with pressed paper-foam-paper sandwich cone. Extremely rigid, powder-coated die-cast aluminum basket with special construction for extremely flat installation depth. Highly durable 2 x 2 Ω dual voice coil with 51 mm diameter and extra ventilation. Extremely strong ferrite magnet with large pole core bore and additional ventilation holes for maximum performance! High-quality clamp connection terminals. 2 x 200 W RMS rated power handling. 2 x 250 W music power handling. 81.5 dB sound pressure level. Outer diameter 217 mm. Installation depth 74.5 mm. Cutout diameter 186 mm. Engineered in Germany.MW 8 FLATImpedance2x2 ΩNominal power (RMS400 WMusic power500 WSound pressure level 81.5 dBOuter diameter 217 mmInstallation depth74.5 mm
Nominal impedance
Zn
2x2
Ω
Total moving mass (incl. air mass)
MMD
116.0
g
DC resistance
Re
2x1.9
Ω
Effective piston area
SD
213.82
cm2
Voice coil inductance
Le
1.856
mH
Resonance frequency TSP
fr
41.0
Hz
Force factor
BLxl
13.175
Tm
Suspension compliance
CMS
0.131
mm/N
Mechanical Q
QMS
8.305
Xmax mechanical
+/-
30
mm
Electrical Q
QES
0.675
Equivalent air vol. of suspension
VAS
8.466
dm3
Total Q
QTS
0.628
Characteristic SPL 1W / 1 m
81.5
dB
Mechanical resistance
RMS
5.86
kg/s
Rated power
400/500
W
magnet material
-
Ferrit
-
voice coil diameter
51
mm
Overall diameter
217
mm
Cutout diameter
186
mm
Installation depth
74.5
mm
Weight
3.6
kg
technische_daten_impendanz_image
