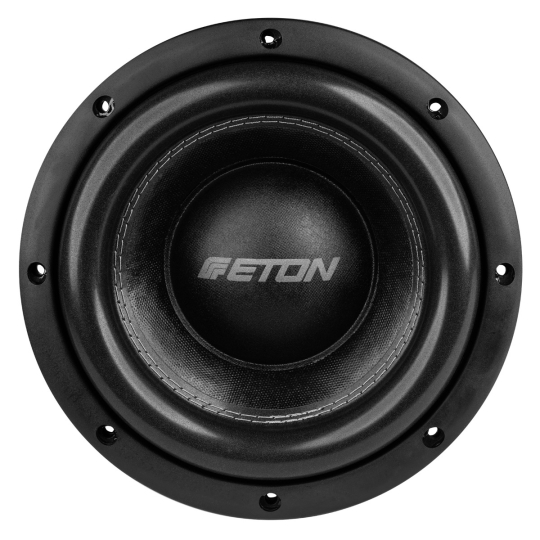

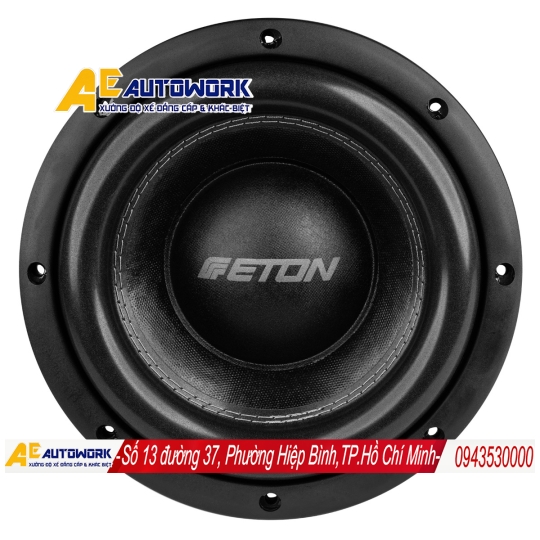

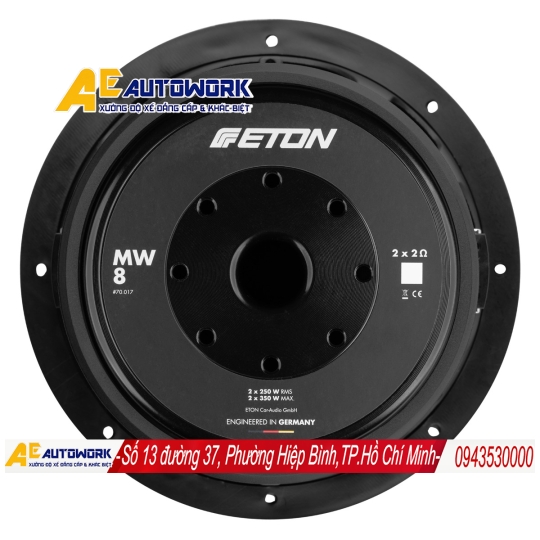

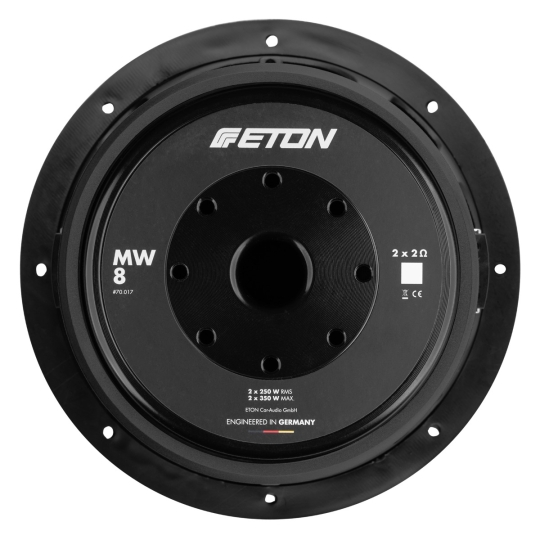

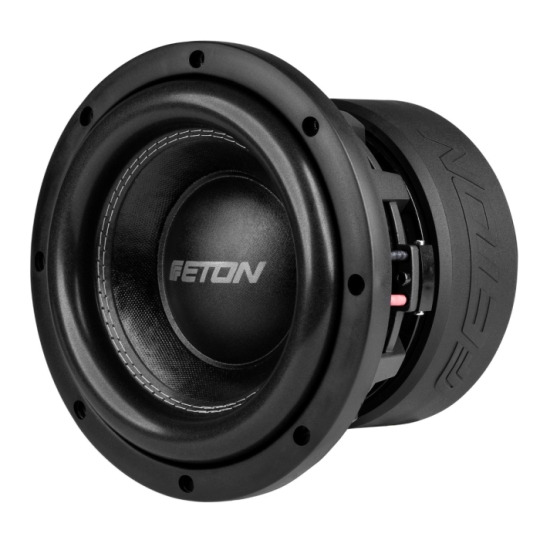

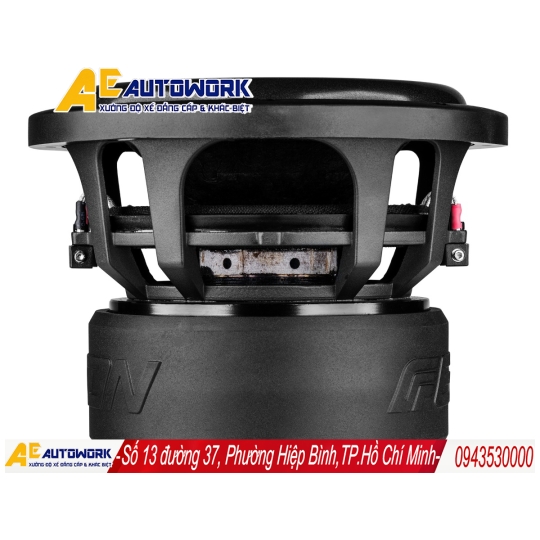

200 mm (8") subwoofer with pressed, air-dried paper cone and additionally stitched long-throw surround. Extremely torsion-resistant, powder-coated die-cast aluminum basket, open construction for maximum heat dissipation. Heavy-duty 2 x 2 Ω dual voice coil with ventilation. Extremely strong ferrite magnet with large pole core hole and additional ventilation holes for maximum performance! High-quality screw connection terminals. 2 x 250 W RMS rated power handling, 2 x 350 W music power handling. 81.3 dB characteristic sound pressure. Outer diameter 217 mm, installation depth 140 mm, cut-out diameter 186 mm. Engineered in Germany.MW 8Impedance2x2 ΩNominal power (RMS500 WMusic power700 WSound pressure level 83 dBOuter diameter 217 mmInstallation depth140 mm
Total moving mass (incl. air mass)
Equivalent air vol. of suspension
Characteristic SPL 1W / 1 m
