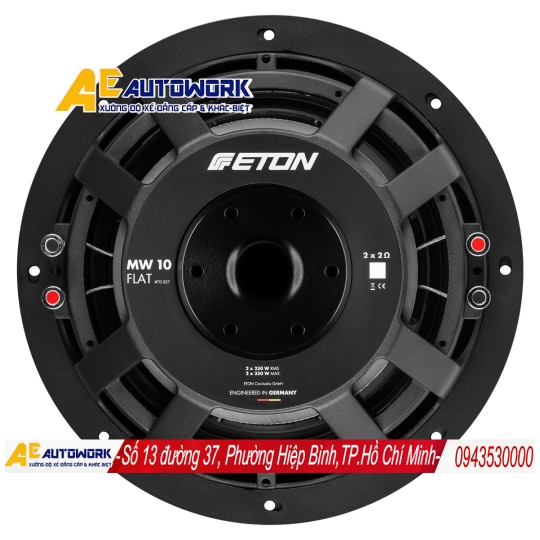

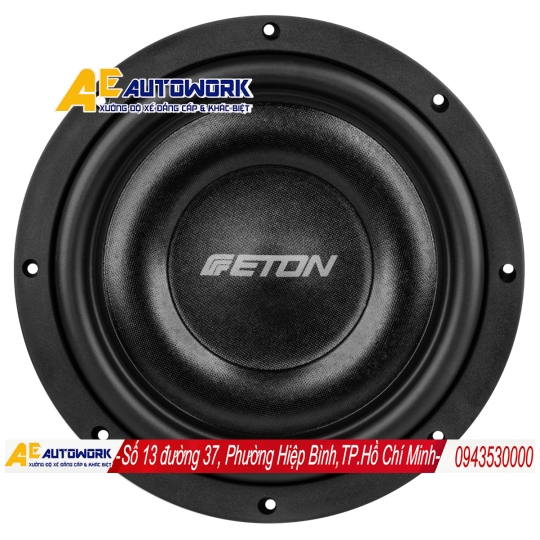

MW 10 FLAT

Flat, flatter - FLAT subwoofers! The new ETON MW FLAT series scores with its particularly flat dimensions - rich bass performance and yet extremely flat. Ideal for all spare wheel recessed subwoofers or enclosures that need to be flat. Extremely powerful ferrite magnets and large, heavy-duty 2 x 2 Ω voice coils with pressed paper cone and long-throw surround in a special design. Extremely torsion-resistant die-cast aluminum baskets and high-quality clamp connection terminals. One of the most powerful flat subwoofers in its class!

  • Liên hệ
  • 42
NHẬP THÔNG TIN ĐỂ ĐƯỢC TƯ VẤN

Liên hệ đặt hàng nhanh chóng qua

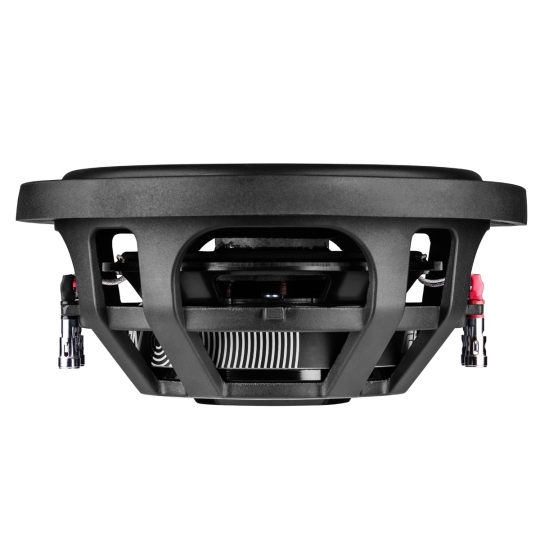

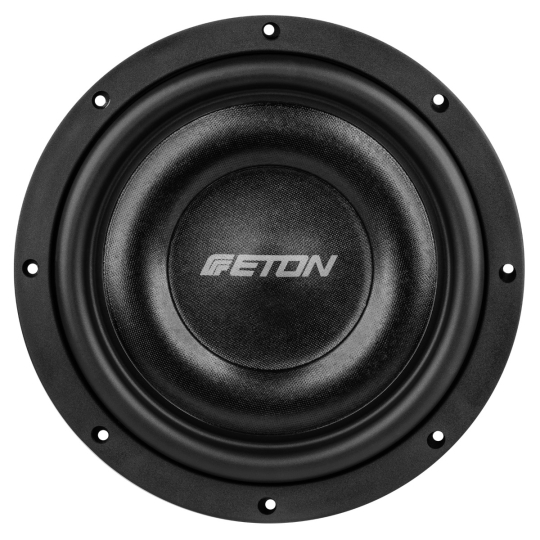

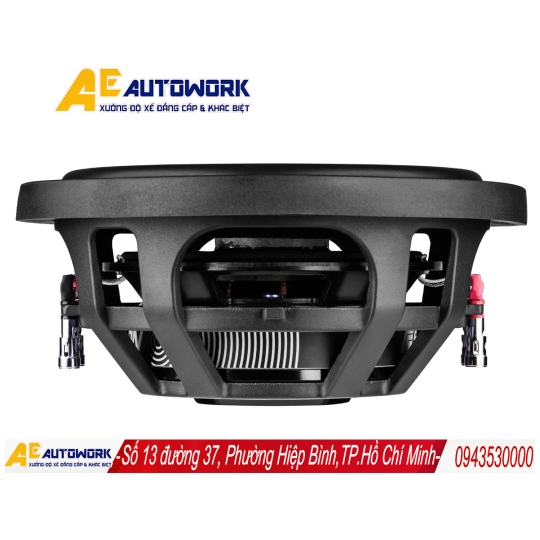

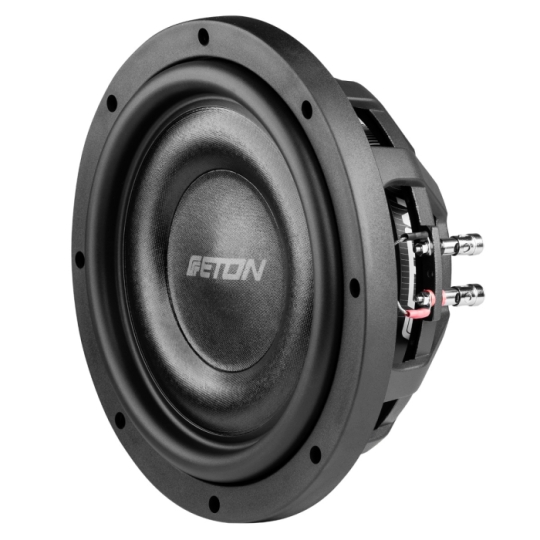

250 mm (10") flat subwoofer with pressed, air-dried paper cone. Extremely torsion-resistant, powder-coated die-cast aluminum basket, with special design for extremely flat installation dimensions. Heavy-duty 2 x 2 Ω double voice coil with ventilation. Extremely strong ferrite magnet with large pole core hole and additional ventilation holes for maximum performance! High-quality clamp terminals. 2 x 250 W RMS rated power handling. 2 x 350 W music power handling. 84 dB characteristic sound pressure. Outer diameter 278 mm. Installation depth 97 mm. Cut-out diameter 238 mm. Engineered in Germany.MW 10 FLATImpedance2x2 ΩNominal power (RMS500 WMusic power700 WSound pressure level 84 dBOuter diameter 278 mmInstallation depth97 mm
Nominal impedance
Zn
2x2
Ω
Total moving mass (incl. air mass)
MMD
176.77
g
DC resistance
Re
3.8
Ω
Effective piston area
SD
346
cm2
Voice coil inductance
Le
3.23
mH
Resonance frequency TSP
fr
34.2
Hz
Force factor
BLxl
18.67
Tm
Suspension compliance
CMS
0.12
mm/N
Mechanical Q
QMS
5.34
Xmax mechanical
+/-
38.0
mm
Electrical Q
QES
0.48
Equivalent air vol. of suspension
VAS
20.81
dm3
Total Q
QTS
0.44
Characteristic SPL 1W / 1 m
84
dB
Mechanical resistance
RMS
6.67
kg/s
Rated power
500/700
W
magnet material
Ferrit
voice coil diameter
63
mm
Overall diameter
275
mm
Cutout diameter
242
mm
Installation depth
98
mm
Terminal
4
qmm
Weight
6.1
kg
technische_daten_impendanz_image
