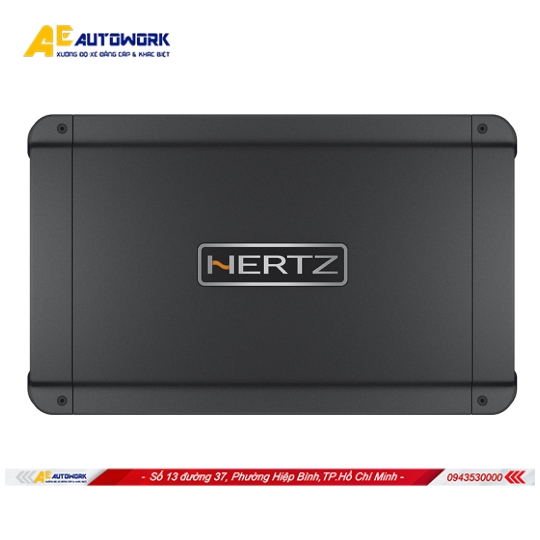

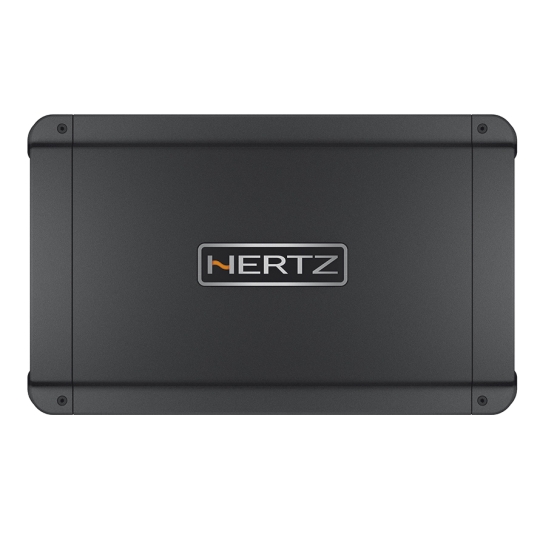

HCP 4DK
Liên hệ đặt hàng nhanh chóng qua
| Channels | 4 - 3 - 2 |
| POWER SUPPLY | |
| Power supply voltage / fuse: | 11 ÷ 15 VDC / 2 x 35 A |
| Idling current (power ON/OFF) | 1.6 A / 0.05 mA |
| Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): | 40 A |
| Remote In: | 4 ÷ 16 VDC - 1 mA |
| ART: | Automatic Remote Turn-On/Off with Speaker-In |
| AMPLIFIER STAGE | |
| Distorsion - THD (100 Hz @ 4 Ω): | 0.03% |
| Bandwidth: | 10 ÷ 35k Hz |
| S/N Ratio (A weighted @ 1 V): | 105 dB |
| Damping factor (100 Hz @ 4 Ω): | 200 |
| Pre-In sensitivity: | 0.2 ÷ 5 VRMS |
| Speaker-In sensitivity: | 0.8 ÷ 20 VRMS |
| Load impedance (MIN) | |
| @ 4 Ch: | 2 Ω |
| @ 3 Ch: | 2 Ω + 2 Ω + 4 Ω |
| @ 2 Ch: | 4 Ω |
| Max size (mm / in.): | 315 x 190 x 50 / 12.40 x 7.48 x 1.97 |
| Weight (kg / lb.): | 2,73 / 6.01 |
| Adjustable Crossovers | yes |
| Output Power (RMS) @ 14.4 VDC, THD 1% | |
| 4 Ch: | 120 W x 4 (4 Ω) |
| 4 Ch: | 220 W x 4 (2 Ω) |
| 3 Ch: | 120 W x 2 (4 Ω) + 440 W x 1 (4 Ω) |
| 3 Ch: | 220 W x 2 (4 Ω) + 440 W x 1 (4 Ω) |
| 2 Ch: | 440 W x 2 (4 Ω) |
| Output Power (RMS) @ 14.4 VDC, THD 10%: | |
| 4 Ch: | 150 W x 4 (4 Ω) |
| 4 Ch: | 250 W x 4 (2 Ω) |
| 3 Ch: | 150 W x 2 (4 Ω) + 520 W x 1 (4 Ω) |
| 3 Ch: | 250 W x 2 (2 Ω) + 520 W x 1 (4 Ω) |
| 2 Ch: | 520 W x 2 (4 Ω) |
| CEA 2006-A Ratings: | |
| RMS Power (4 Ω, ≤1 %THD + N, 14.4 V): | 110 W x 4 Ch |
| S/N Ratio (ref. 1 W output): | 85 dBA |
| Total Power | 2000 W |
| INPUTS : | PRE IN / SPEAKER IN |
| Pre out FULL range (FRONT) | Yes |
| FRONT Ch. filters FULL | Yes |
| Hi-Pass: | 50 ÷ 3.2k Hz @ 12 dB/Oct |
| Lo-Pass: | 50 ÷ 3.2k Hz @ 12 dB/Oct. |
| REAR Ch. filters FULL: | Yes |
| Hi-Pass: | 50 ÷ 3.2k Hz @ 12 dB/Oct |
| Lo-Pass: | 50 ÷ 3.2k Hz @ 12 dB/Oct. |
| FRONT Ch. MONO (on/off): | Yes |
| REAR Ch. MONO (on/off): | Yes |
| BOOST 50 Hz (adjust): | (0 ÷ 12) dB |
| mm | in | |
| A | 315 | 12.40 |
| B | 291 | 11.45 |
| C | 190 | 7.48 |
| D | 166 | 6.53 |
| E | 50 | 1.97 |

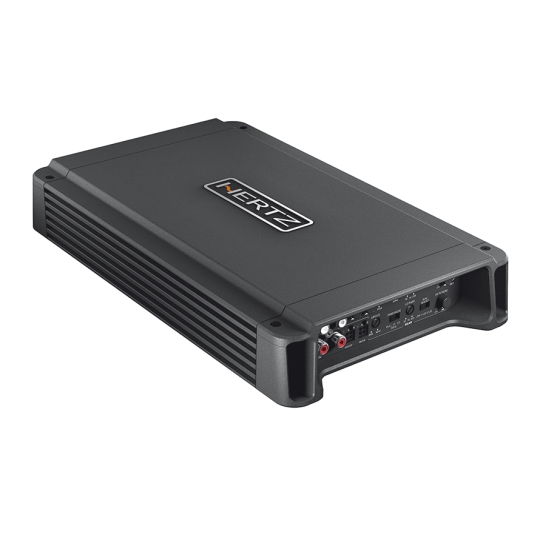

The new HCP 4DK features latest generation D-Class 2Ω stable output stage reaching the impressive max power of 2000 W with the excellent S/N ratio of 105 dB.
The extruded aluminum heatsink provides high efficiency thermal performance; using the top side of the heatsink to effectively dissipate the heat generated by the electronic components. The internal temperature remains constant at all power levels.
Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass, Full Range, Bass Boost, Phase and Mono.
Automatic Remote Turn-On/Off function, automatically turns the amplifier on and off with the OEM radio; eliminates the need for a remote signal from the source when using the Speaker-In. This function can also be disabled.
