GRAPHIT 16

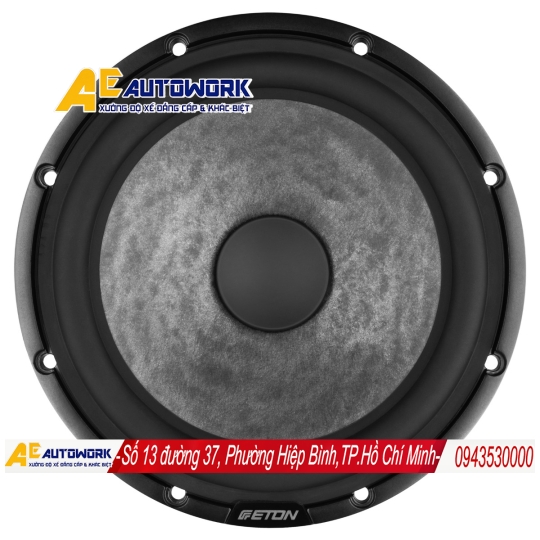

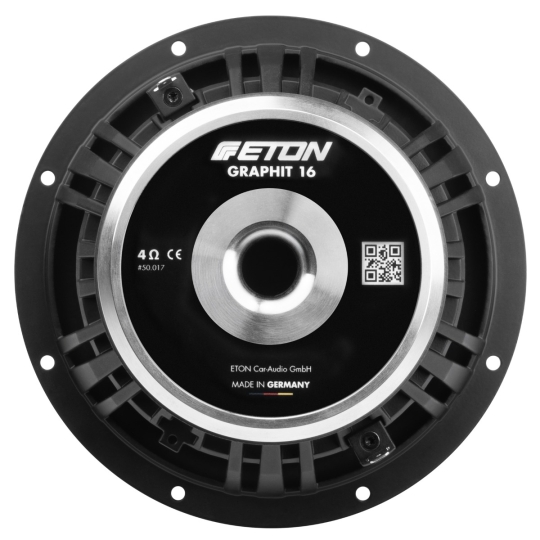

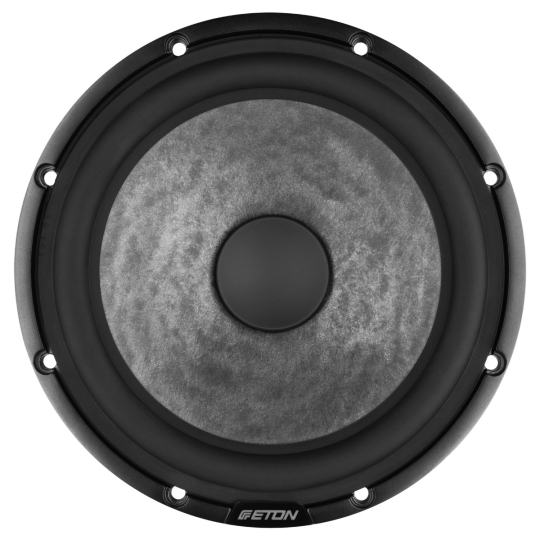

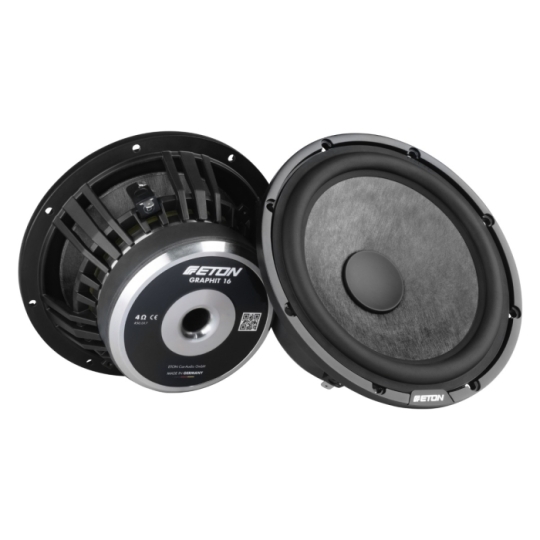

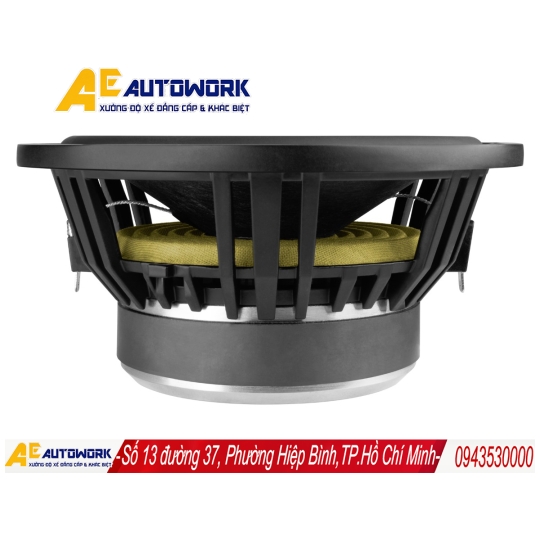

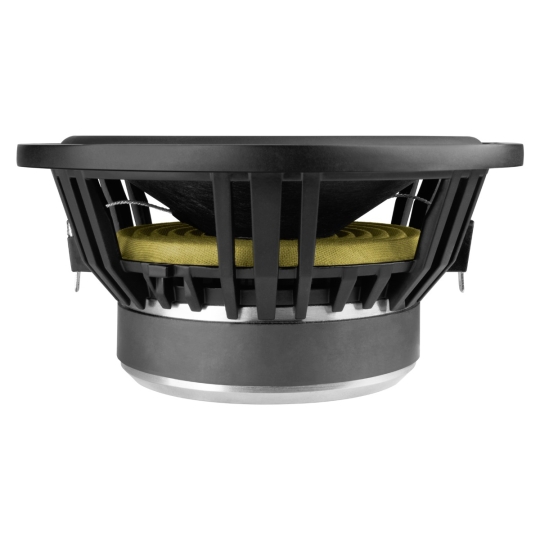

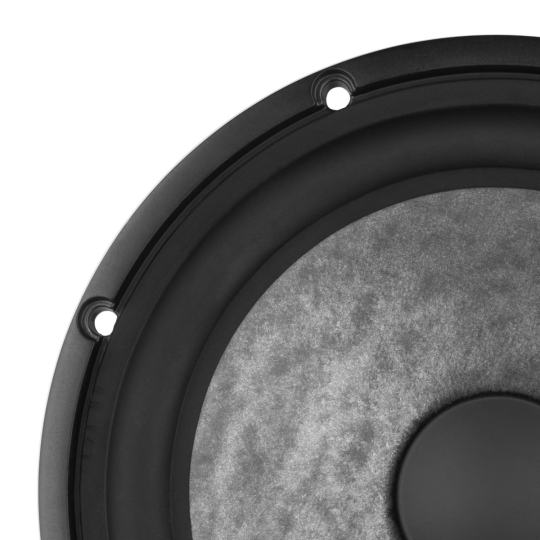

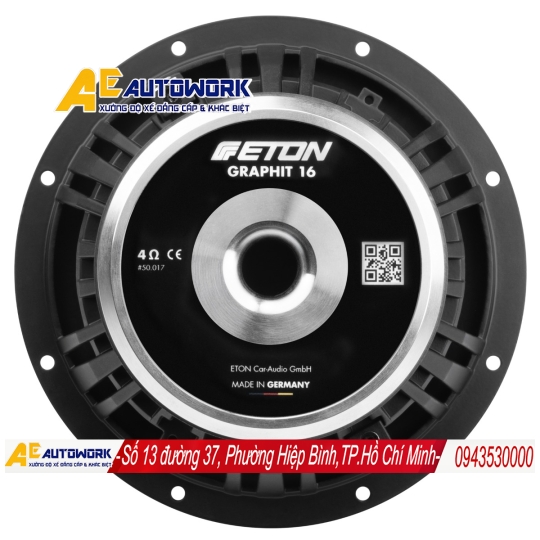

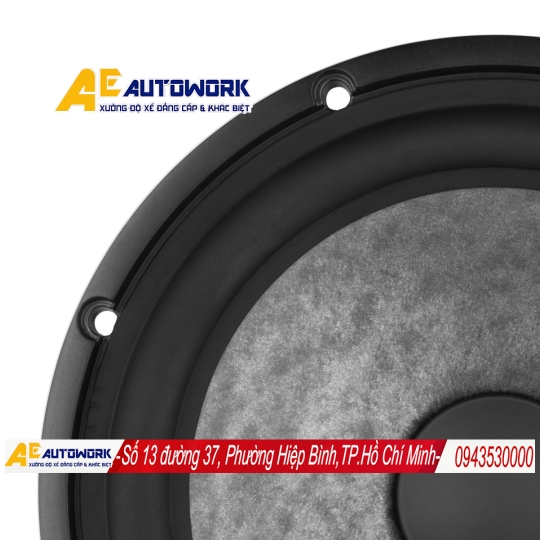

High-end 165 mm (6.5") woofer / midrange driver with torsion-resistant carbon fleece sandwich cone and aluminum dustcap: The woofers / midrange drivers have extremely powerful ferrite magnets with polished drive components and large core bore. The heavy-duty 37 mm voice coil is the guarantor for an extremely powerful, dynamic and contoured music reproduction. The ETON typical aluminum die-cast basket geometry with its open design ensures optimum cooling with maximum torsional rigidity. In combination with the anodized aluminum dustcap, the resulting heat is optimally dissipated. The high-quality connection terminals and the symmetrical stranding guidance are details that underline the claim of this system. GRAPHIT 16 is a dynamic and balanced sounding high-end system. Whether hard kick bass or smooth voice reproduction, GRAPHIT 16 convinces with incredible precision and spatiality - a system in a class of its own for true sound enthusiasts!

  • Liên hệ
  • 23
NHẬP THÔNG TIN ĐỂ ĐƯỢC TƯ VẤN

Liên hệ đặt hàng nhanh chóng qua

High-end 165 mm (6.5 inch) woofer/midrange with carbon fleece sandwich cone, anodized aluminum dustcap for optimized heat dissipation and symmetrical stranding guidance with voice coil ventilation. Extremely torsion-resistant die-cast aluminum basket with optimized ventilation and strong ferrite magnet, 4 ohms impedance, 90 W RMS rated power handling, 140 W music power handling, 87 dB characteristic sound pressure, Made in Germany manufacturing and development.GRAPHIT 16Bass / midrange165 mm (6.5")Impedance4 ΩNominal power (RMS90 WMusic power140 WSound pressure level 87 dBOuter diameter 165 mmInstallation depth68.8 mm

Nominal impedance
Zn
4
Ω
Total moving mass (incl. air mass)
MMD
19.8
g
DC resistance
Re
3.3
Ω
Effective piston area
SD
132
cm2
Voice coil inductance
Le
0.32
mH
Resonance frequency TSP
fr
66
Hz
Force factor
BLxl
5.7
Tm
Suspension compliance
CMS
0.29
mm/N
Mechanical Q
QMS
8.72

Xmax mechanical
+/-
9.5
mm
Electrical Q
QES
0.82

Equivalent air vol. of suspension
VAS
7.3
dm3
Total Q
QTS
0.75

Characteristic SPL 1W / 1 m

87
dB
Mechanical resistance
RMS
0.93
kg/s
Rated power

90/140
W
magnet material


Ferrite
voice coil diameter

37
mm
Overall diameter

165
mm
Cutout diameter

146
mm
Frame depth

6
mm
Installation depth

68.8
mm
Screw hole diameter

5.1/8
mm
Terminal

4.8/6.3
mm
Weight

1.40
kg
technische_daten_impendanz_image
