Hertz DIECI POWER amplifier DP 4.300 is an audio powerhouse designed to elevate your car audio experience to unprecedented heights. Boasting High-Resolution Audio Certification, this amplifier delivers an impressive frequency response of 10 Hz to 45 kHz, ensuring that every nuance of your music is faithfully reproduced with crystal-clear precision.
Despite its compact size, the DP 4.300 packs a punch with its maximum power output, featuring fully bridgeable 4-channel Class-AB amplification and 2Ω stability. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.

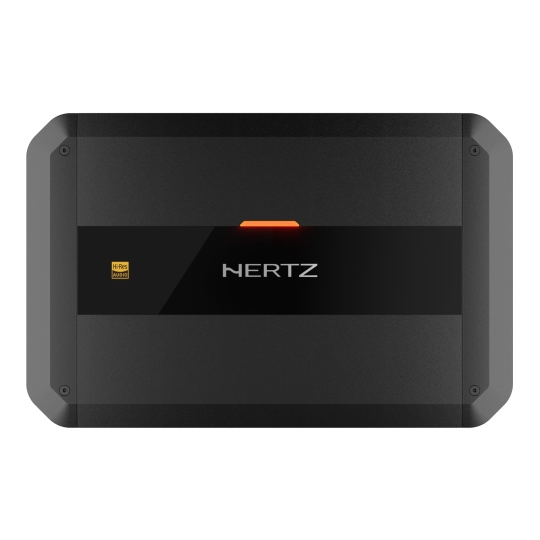

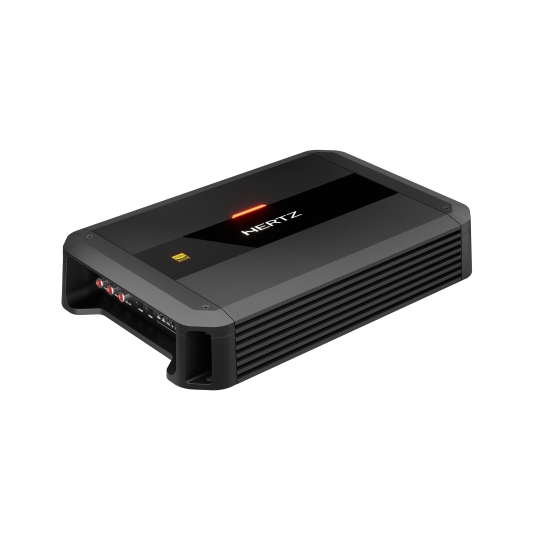

The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.
Universal compatibility is a key feature of the DP 4.300, offering an operating supply voltage ranging from 6.5 to 16.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.
Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost, provides users with the flexibility to fine-tune the audio to their preferences.
Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system.
Whether utilizing Speaker-In or Pre-In level inputs, the DP 4.300 offers full-range pre-outs, providing further flexibility in system configuration. Elevate your car audio system with the Hertz DIECI POWER Amplifier DP 4.300 – where power, precision, and style converge for an unparalleled listening experience on the road.
Consumption, MIN load impedance (Max Musical Power)
24 A
Remote IN
4 ÷ 15 VDC (1.5 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only)
1.5 VDC
Efficiency
59%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power
0.015%
Damping factor @ 1 kHz, 1W
105
Bandwidth @ -3 dB
10Hz ÷ 45kHz
S/N ratio (A-weighted @ 1 V Input)
100 dBA
Minimum load impedance
@ 4 Ch:
2 Ω
@ 3 Ch:
2 Ω + 2 Ω + 4 Ω
@ 2 Ch:
4 Ω
Adjustable Crossovers
yes
Output Power
Output power (RMS) @ 1% THD:
4Ch @ 4Ω
60 W x 4
4Ch @ 2Ω
85 W x 4
3Ch @ 4Ω
60 W x 2 + 170 W x 1
3Ch @ 2Ω / 4Ω
85 W x 2 + 170 W x 1
2Ch @ 4Ω
170 W x 2
Output Power (RMS) @ 14.4 VDC, THD 10%:
4Ch @ 4Ω
75 W x 4
4Ch @ 2Ω
105 W x 4
3Ch @ 4Ω
75 W x 2 + 210 W x 1
3Ch @ 2Ω / 4Ω
105 W x 2 + 210 W x 1
2Ch @ 4Ω
210 W x 2
Total Power
420 W
INPUTS / FILTERS
Inputs
Pre-In / Speaker-In
Pre Out
Full Range - (Front)
Pre-In sensitivity
0.32 ÷ 8 VRMS
Speaker-In sensitivity
1.6 ÷ 40 VRMS
Front Ch Hi-Pass
Full / 50-4000Hz 12dB/Oct.
Front Ch Lo-Pass
Full / 50-4000Hz 12dB/Oct.
Rear Ch Hi-Pass
Full / 50-4000Hz 12dB/Oct.
Rear Ch Lo-Pass
Full / 50-4000Hz 12dB/Oct.
Bass Boost 50Hz
0 ÷ 9 dB
Physical Specs
Dimension
mm
in
A
290
11.41
B
252
9.92
C
190
7.48
D
166
6.53
E
50
1.96
Weight
Kg
lbs
2.43
5.36
Features
High-Resolution Audio Certification: Hi-Res Audio certification featuring a frequency response of 10 Hz – 45 kHz.
Maximum Power in Compact Size: fully bridgeable 4-channel Class-AB 2Ω stable power outputs in a small and compact design.
Attractive Design: elegant status LED, solid machined terminal block and removable top panel to protect controls and connections.
Universal Compatibility: operating supply voltage from 9 to 16.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms with integrated Universal Speaker Simulator.
High-noise rejection: Pre-in and Speaker-in featuring balanced input circuitry.
Full set of controls: adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost to fine-tune the sound according to your preferences.
Automatic Remote Turn-On/Off: driven by OEM radio speak
Full-Range pre-outs: available both when using Speaker-In and Pre-in level inputs.
Technologies
Hi-Res Audio certification featuring a frequency response of 10 Hz – 50 kHz.
Thanks to the built-in USS technology (Universal Speakers Simulator), DIECI POWER amplifiers can be correctly connected to head units with a “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs.
DIECI POWER amplifiers are ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or the factory amp area.
