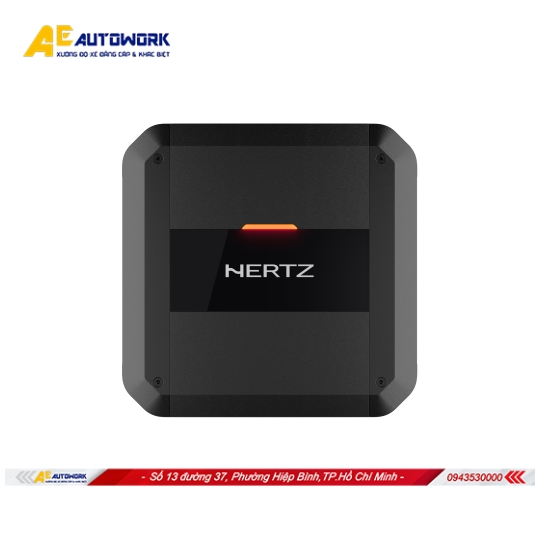

DP 1.500
| Channels | 1 |
| Amp class | D |
| POWER SUPPLY | |
| Nominal power supply voltage (fuse) | 11 ÷ 15 VDC (1 x 30 A) |
| Operating power supply voltage | 6.5 ÷ 17.5 VDC |
| Idling current | 1 A |
| Standby current draw | 50 uA |
| Consumption, MIN load impedance (Max Musical Power) | 21 A |
| Remote IN | 4 ÷ 17 VDC (1 mA) |
| ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only) | 1.5 VDC |
| Efficiency | 86% |
| AMPLIFIER STAGE | |
| Distortion - THD @ 100 Hz, 70% Rated Power | 0.2% |
| Damping factor @ 1 kHz, 1W | 180 |
| Bandwidth @ -3 dB | 10Hz ÷ 500Hz |
| S/N ratio (A-weighted @ 1 V Input) | 99 dBA |
| Minimum load impedance | |
| @ 1 Ch: | 2 Ω |
| Adjustable Crossovers | yes |
| Output power (RMS) @ 1% THD: | |
| 1Ch @ 4Ω | 280 W x 1 |
| 1Ch @ 2Ω | 500 W x 1 |
| Output Power (RMS) @ 14.4 VDC, THD 10%: | |
| 1Ch @ 4Ω | 350 W x 1 |
| 1Ch @ 2Ω | 590 W x 1 |
| Total Power | 590 W |
| Inputs | Pre-In / Speaker-In |
| Pre Out | Full Range |
| Pre-In sensitivity | 0.32 ÷ 8 VRMS |
| Speaker-In sensitivity | 1.6 ÷ 40 VRMS |
| Lo-Pass | OFF / 50÷ 250Hz 24dB/Oct. |
| Subsonic | OFF / 25 Hz @ 24 dB/Oct. |
| Phase | 0 / 180° |
| Bass Boost 50Hz | 0 ÷ 9 dB |
| SUB Remote Volume Control HRC 02 | -20 ÷ 6 dB |
DP 1.500 level can be adjusted (-15 dB ÷ 0 dB) using the optional HRC 02 remote control. HRC 02 is ready for tape surface mounting, screw surface mounting, and recessed mounting, thanks to the provided accessories.
Discover more on HRC 02 product page.
• Maximum Power in Compact Size: ADC (Advanced Class-D) 2Ω stable power output in a small and compact design.
• Attractive Design: elegant status LED, solid machined terminal block, and removable top panel to protect controls and connections.
• Universal Compatibility: operating supply voltage from 6.5 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms with integrated Universal Speaker Simulator.
• High-noise rejection: Pre-in and Speaker-in featuring balanced input circuitry.
• Full set of controls: adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost to fine-tune the sound according to your preferences.
• Automatic Remote Turn-On/Off: driven by OEM radio speaker outputs.
• Full-Range pre-outs: available both when using Speaker-In and Pre-in level inputs.
• HRC 02 Remote Control Ready: provides the ability to tune the subwoofer level for any preference.
