| Channels | 5 - 3 |
| Amp class | D |
| POWER SUPPLY | |
| Nominal power supply voltage (fuse) | 11 ÷ 15 VDC (2 x 30 A) |
| Operating power supply voltage | 9 ÷ 18 VDC |
| Idling current | 1.90 A |
| Standby current draw | 4 uA |
| Consumption, MIN load impedance (Max Musical Power) | 48 A |
| Remote IN | 4 ÷ 17 VDC (1 mA) |
| ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only) | 1.5 VDC |
| Efficiency | 83% |
| AMPLIFIER STAGE | |
| Distortion - THD @ 100 Hz, 70% Rated Power | 0,01 % (F/R Ch) - 0,06 % (SUB Ch) |
| Damping factor @ 1 kHz, 1W | 160 (F/R Ch) - 180 (SUB Ch) |
| Bandwidth @ -3 dB | 10Hz ÷ 47kHz (F/R Ch) - 10Hz ÷ 500Hz (SUB Ch) |
| S/N ratio (A-weighted @ 1 V Input) | 101 dBA (F/R Ch) - 116 dBA (SUB Ch) |
| Minimum load impedance | |
| @ 5 Ch: | 2 Ω |
| @ 3 Ch: | 4 Ω + 4 Ω + 2 Ω |
| Adjustable Crossovers | yes |
| Output power (RMS) @ 1% THD: | |
| 5Ch @ 4Ω | 80 W x 4 + 330 W x 1 |
| 5Ch @ 2Ω | 130 W x 4 + 510 W x 1 |
| 3Ch @ 2Ω / 4Ω | 260 W x 2 + 510 W x 1 |
| 2Ch @ 4Ω | 260 W x 2 + 320 W x 1 |
| Total Power | 1030 W |
| Inputs | Pre-In / Speaker-In |
| Pre Out | Full Range (Front) |
| Pre-In sensitivity | 0.32 ÷ 8 VRMS |
| Speaker-In sensitivity | 1.6 ÷ 40 VRMS |
| Front Ch Hi-Pass | Full / 50-5000Hz 12dB/Oct. |
| Rear Ch Lo-Pass | Full / 50-5000Hz 12dB/Oct. |
| Sub Ch Lo-Pass | 50 ÷ 500 Hz @ 24 dB/Oct. |
| Bass Boost 50Hz | 0 ÷ 9 dB |
| Subsonic Hi-Pass | 25 Hz @ 24 dB/Oct. |
| Sub Remote Volume Control | -20 ÷ 6 dB (Active on Sub Ch) |
| Weight | Kg | lbs |
| 2.27 | 5 |
CP 5.1k subwoofer level can be adjusted (-20 ÷ 6 dB) using the optional HRC 02 remote control. HRC 02 is ready for tape surface mounting, screw surface mounting, and recessed mounting, thanks to the provided accessories.
Discover more on HRC 02 product page.
Hi-Res Audio certification featuring a frequency response of 10 Hz – 41 kHz.
Up to 85% efficiency thanks to ADC (Advanced D-Class) output stage.
Thanks to the built-in USS technology (Universal Speakers Simulator), DIECI POWER amplifiers can be correctly connected to head units with a “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs.
Cento Power amplifiers are ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or the factory amp area.
Unleashing High-Performance Sound with Cutting-Edge Technology
Hertz proudly presents the new Cento Power series, designed for those who demand high-performance sound without compromise. Built on the latest Advanced D-Class (ADC) technology, Cento Power amplifiers deliver superior power efficiency with a compact and elegant design. Whether you’re upgrading your car audio system for crystal-clear sound or deep, immersive bass, Cento Power is engineered to meet your highest expectations.
The Cento Power CP 5.1K and CP 4.800 are certified for Hi-Res Audio, offering an extended frequency response up to 41 kHz. This allows them to reproduce the full dynamic range of high-resolution audio files, ensuring every detail of your music is captured with precision.
Optimal Power-to-Size Ratio Designed to pack high power in a sleek, compact aluminum body, ensuring maximum efficiency.
Plug & Play Installation All models feature Molex connections for easy and reliable long-term installation.
Elegant Design A sophisticated look with an LED status indicator and a removable top panel to protect the control interface.
Comprehensive Controls Adjustable input levels, crossover filters, bass boost, subsonic filters, and phase control for complete sound customization.
Universal Compatibility Integrated Universal Speaker Simulator adapts input sensitivity from 1.6 to 40 Vrms for compatibility with modern head units.
Electric Vehicle Ready Optimized for a power supply range of 9 to 18 Vdc, making them compatible with electric vehicles.
Advanced Noise Rejection Balanced input circuitry ensures clean sound quality, free from interference.
Full-Range Pre-Outs Flexibility to expand your audio system with both Speaker-In and Pre-In level inputs.
HRC 02 Remote Control Optional remote control for easy subwoofer level adjustments on the go.
All models in the Cento Power line feature Hertz’s innovative Advanced D-Class (ADC) technology. This allows for top-tier power output with over 85% efficiency, reducing heat and power consumption while maintaining exceptional sound clarity. The compact aluminum diecast chassis provides both durability and sleek aesthetics, fitting perfectly into any car setup.

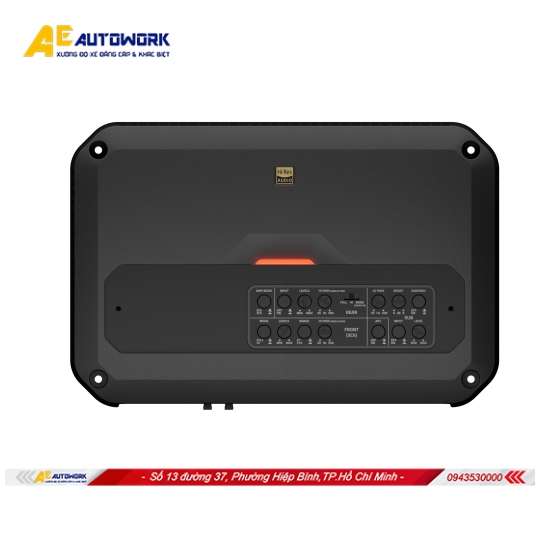

Comprehensive Control Settings
Ensures all adjustments are easily reachable, even after installation.
Includes adjustable input levels, high/band/low-pass crossover filters, bass boost, and a subsonic filter for fine-tuning sound
Comes with integrated USS, adapting input sensitivity from 1.6 to 40 Vrms for
compatibility with new class SB Head Units.

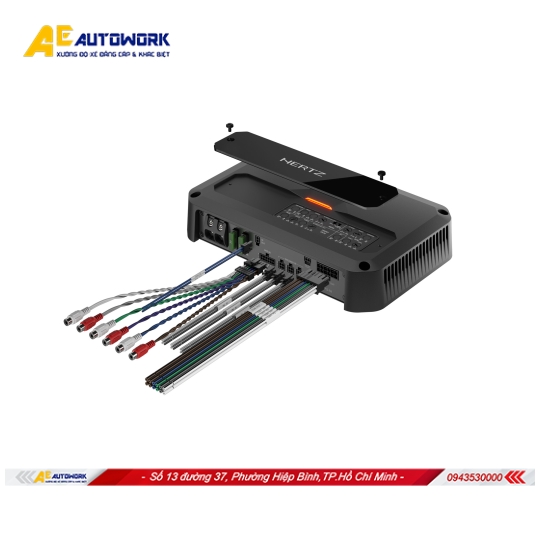

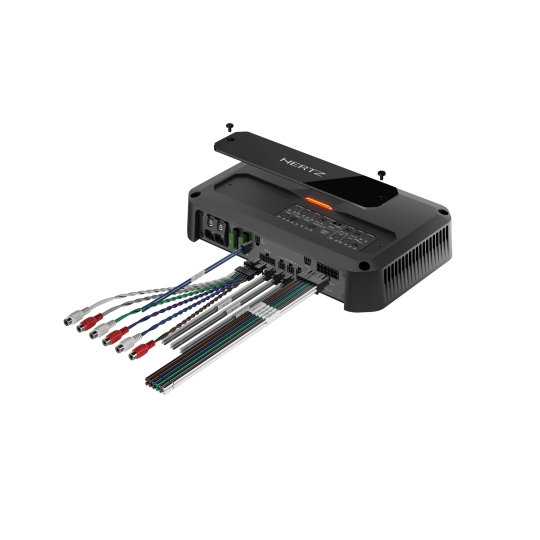

Designed for easy installation with durable long-term Molex connections and Plug&Play cables provided
ELECTRIC VEHICLE READY
Allows for customized subwoofer level adjustments for all the models
SCREW SURFACE MOUNTING
TAPE SURFACE MOUNTING
RECESSED MOUNTING
| MODEL | POWER W RMS | POWER BRIDGE W RMS | CH.MODE | SIZE W x H x D mm/in. |
|---|---|---|---|---|
| CP 5.1K | 80 x 4 + 330 @4Ω 130 x 4 + 510 @2Ω | 3Ch: 260 x 2 + 320 x 1 @4Ω 3Ch: 260 x 2 @4Ω + 510 x 1 @2Ω | 5 - 3 | 255 x 170 x 48 10.39 x 6.7 x 1.89 |
| CP 4.800 | 110 x 4 @ 4Ω 190 x 4 @ 2Ω | 3Ch:100 x 2 + 400 x 1 3Ch: 190 x 2 @2Ω + 380 x 1 @4Ω 2Ch: 380 x 2 @4Ω | 4 - 3 - 2 | 205 x 155 x 48 8.07 x 6.1 x 1.89 |
| CP 1.2K | 650 x 1 @ 4Ω 1200 x 1 @ 2Ω | Mono | 255 x 170 x 48 10.39 x 6.7 x 1.89 | |
| CP 1.700 | 400 x 1 @ 4Ω 700 x 1 @ 2Ω | Mono | 205 x 155 x 48 8.07 x 6.1 x 1.89 |
