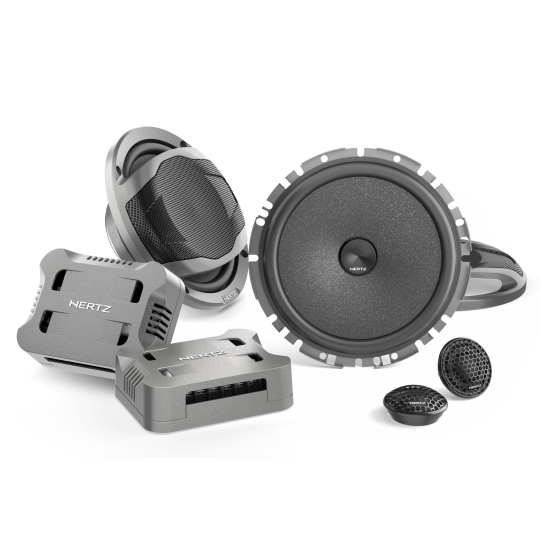

CK 165 F
Liên hệ đặt hàng nhanh chóng qua
| Component | System |
| Size mm (in.) | 165 (6.5) |
| Power Handling - Continuous W | 90 |
| Power Handling - Peak W | 270 |
| Impedance Ohm | 4 |
| Tweeter diaphragm mm (in.) | 26 (1) |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
| Sensitivity dB SPL | 93 |
| Frequency Response Hz | 65 ÷ 22,5k |
| Crossover Cut off | 2,5 kHz @ 12 dB Oct. |
| Crossover Type | 2 Way Passive Crossover |
| Weight of one component - Woofer | 0,72 (1.59) |
| Weight of one component - Tweeter kg (lb) | 0,03 (0.07) |
| Weight of one component - Crossover kg (lb) | 0,185 (0.41) |
| D mm | 134 |
| Re Ohm | 2,7 |
| Fs Hz | 80 |
| Le mH | 0,154 |
| Vas I | 9,40 |
| Mms g | 12 |
| Cms mm/N | 0,33 |
| BL T*m | 3,9 |
| Qts | 0,80 |
| Qes | 1,00 |
| Qms | 3,4 |
| Spl dB | 93 |
| A | 165 mm | 6.5 in. |
| B | 141 mm | 5.55 in. |
| C | 50,6 mm | 1.99 in. |
| D | 43,5 mm | 1.71 in. |

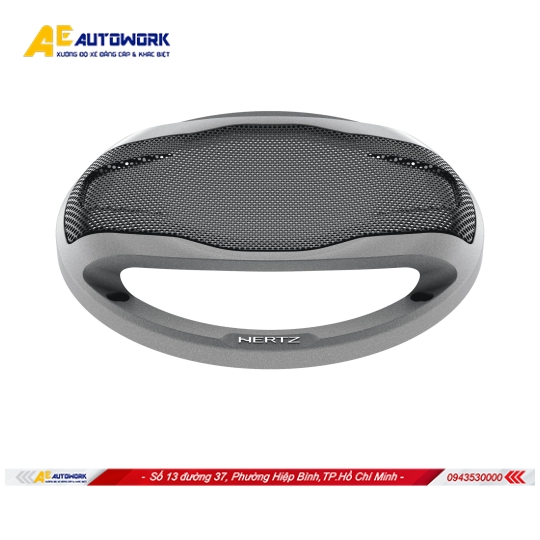

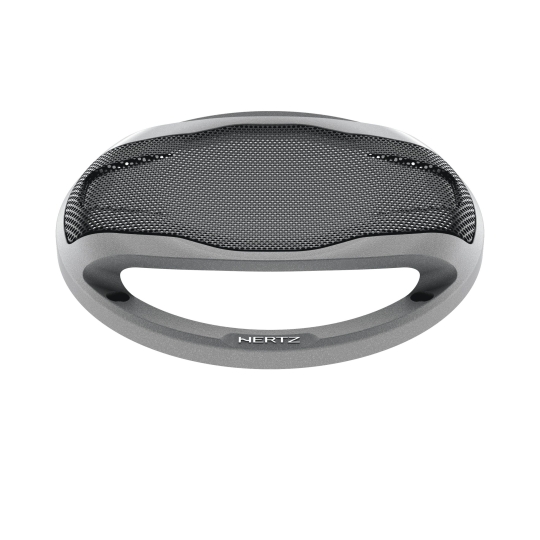

High resistance ABS metal finish grille and removable metallic mesh supplied

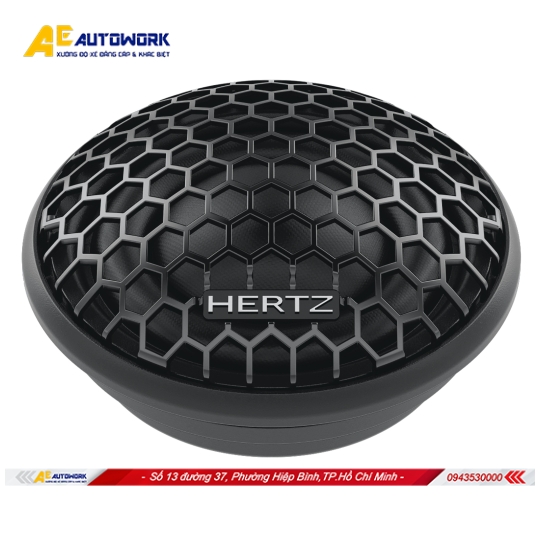

C 26:
1. Soft Tetolon® fiber 26 mm (1 in.) dome and 20 mm (0.8 in.) voice coil, for a natural and yet detailed reproduction of musical nuances.
2. Neodymium magnet with high-density magnetic flux, optimized for maximum control during high-energy dynamic transients in the mid-high frequency range.
3. Faceplate geometry optimized with FEM (Finite Element Modeling) technique for a linear frequency response in off-axis installations.
4. Wide range of accessories, for easy integration in OEM placements.

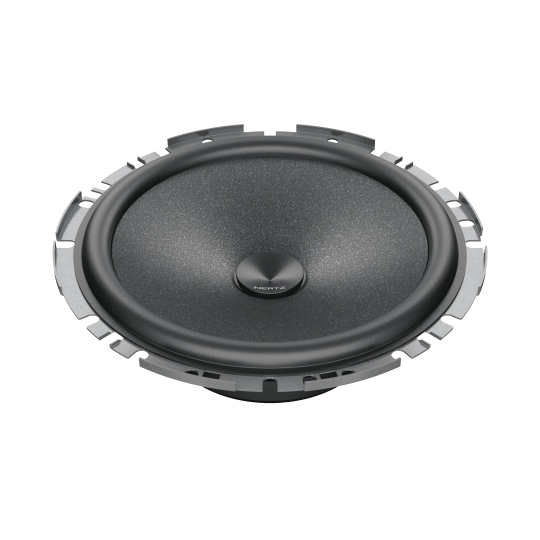

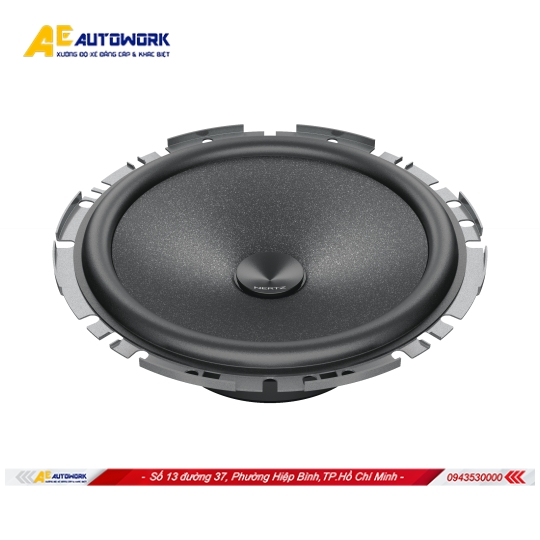

C 165 F:
1. Shallow profile for an easy replacement of factory speakers.
2. Semi-Pressed Paper Cone reinforced with Mica powder for superior stiffness and smooth response.
3. High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
4. Pure copper voice coil, wound on aluminium former, for very good thermal and mechanical capacity.
5. Stylish grille designed combining metallic mesh and high resistance ABS frame.

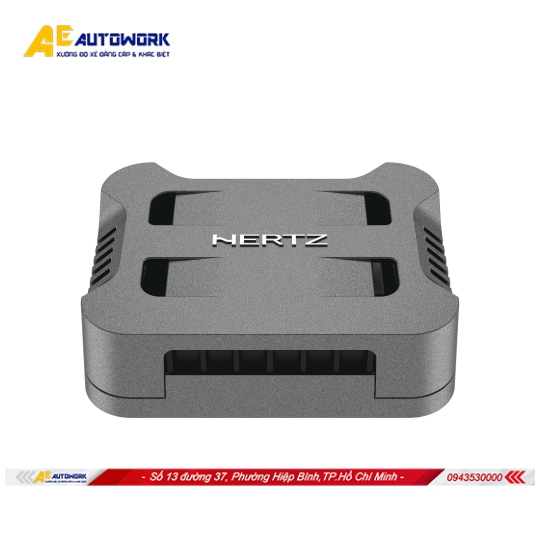

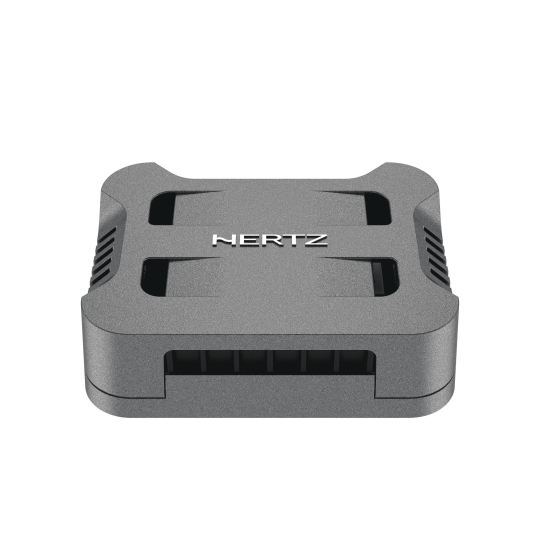

CCX 2:
1. Tweeter level adjustment through a two-position switch (0, +3 dB) for an optimal tone balance that can be customized by the user.
2. Low-loss factor capacitors and low resistance inductances made with pure copper, for maximum sound transparency and clear high frequencies.
3. Compact design with metallic finish for an easy installation, with air vents for efficient heat dissipation.
SPP-M (Semi Pressed Paper-Mica) cone enhanced with Mica powder for an excellent balance between lightness and damping.
The super slim basket with reduced depth allows the use even in the most problematic OEM scenarios, widespread in new generation cars.
