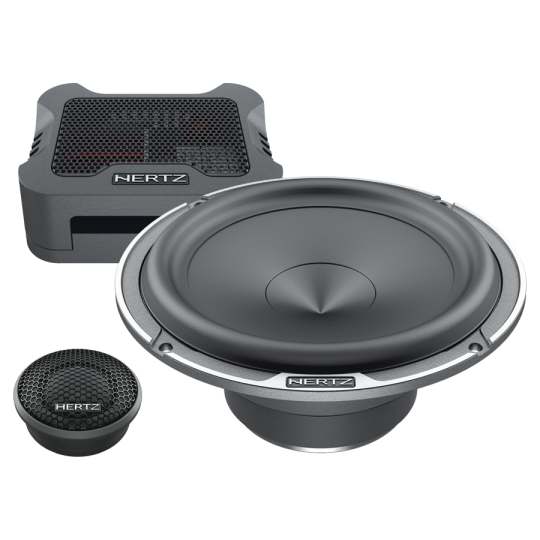

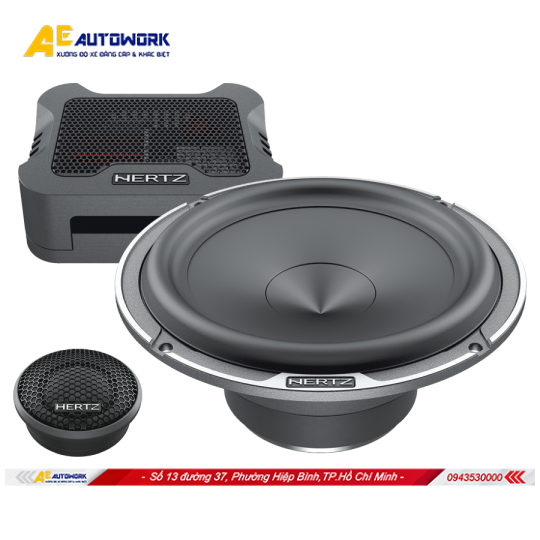

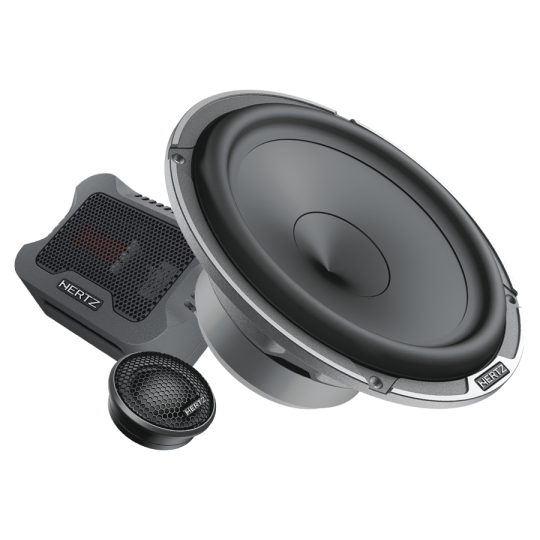

MPK 165.3 PRO

165 (6.5) mm (in.) | System | 220 W | 4 Ohm

The MPK 165.3 car audio speakers system has been designed to ensure a wide low frequency response, even in cars with no space for a subwoofer. Thanks to the V-cone® and Boundary Free Surround technologies the MP 165.3 woofer boast outstanding dispersion features and generates high SPL with compact dimensions. The dedicated crossover MPCX 2.3 has been designed to exploit the wide extension of the MP 165.3 woofers , ensuring a natural transition towards the MP 25.3 tweeter, for maximum natural acoustic emission. The 1mm low parasitic resistance copper filter coil of the woofer maximizes its efficiency. The MPCX 2.3 crossover features tweeter level (0/+2 dB) to calibrate the MP 25.3 acoustic emission level comparing it to the woofer one.

Giá:
Liên hệ
Lượt xem:
8

NHẬP THÔNG TIN ĐỂ ĐƯỢC TƯ VẤN

Liên hệ đặt hàng nhanh chóng qua

Nội dung

Technical Specs
Component	System
Size mm (in.)	165 (6.5)
Power Handling - Continuous W	110
Power Handling - Peak W	220
Impedance Ohm	4
Tweeter diaphragm mm (in.)	29 (1.14)
Woofer Voice Coil Ø mm (in.)	25 (1)
Tweeter Voice Coil Ø mm (in.)	25 (1)
Sensitivity dB SPL	92
Frequency Response Hz	40 ÷ 22,5k
Crossover Cut off	3,5 kHz
Crossover Type	2 Way Passive Crossover
Weight of one component - Woofer	1.07 (2.36)
Weight of one component - Tweeter kg (lb)	0.07 (0.15)
Weight of one component - Crossover kg (lb)	0.16 (0.35)

Electro-acoustic Specs
D mm	132
Re Ohm	3,1
Fs Hz	70
Le mH	0,3
Vas I	9,5
Mms g	14,9
Cms mm/N	0,36
BL T*m	5,5
Qts	0,58
Qes	0,67
Qms	4,6
Spl dB	93

Accessories

Grille

Included

Provided full protection metal mesh grill featuring the aluminium Hertz logo
and attractive look mineral powder coated inner grill are included for several install combinations.
