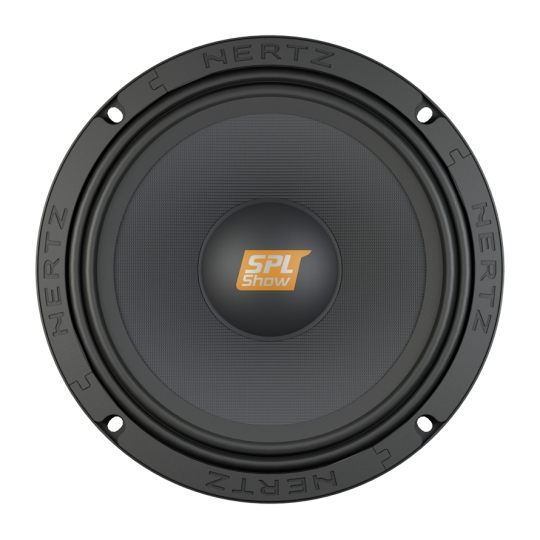

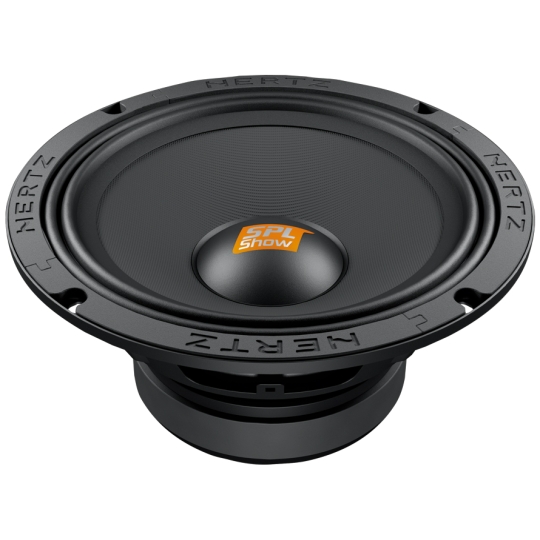

SV 200.1

200 (8) mm (in.) | Spl Midrange | 500 W | 4 Ohm
The SV 200.1 car audio midrange is the 200 mm (8 in.) midrange designed for SPL competitions. Like the SX subwoofers, the SV 200.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.
  • Liên hệ
  • 7
NHẬP THÔNG TIN ĐỂ ĐƯỢC TƯ VẤN

Liên hệ đặt hàng nhanh chóng qua

Component SPL Midrange
Size mm (in.) 200 (8)
Power Handling - Continuous W 200
Power Handling - Peak W 500
Impedance Ohm 4
Voice Coil Ø 38 (1.5)
Frequency Response Hz 100 ÷ 9k
Magnet size D x d x h mm (in.) 80 x 50 x 6 (3.15 x 1.97 x 0.24)
Weight of one speaker kg (lb.) 1,2 (2.65)
Magnet High density flux ferrite
Cone Ultra light pressed paper
Technical Specs
D mm 168
Xmax mm 1,5
Re Ohm 3,3
Fs Hz 120
Le mH 0,06
Vas I 7,5
Mms g 16,5
Cms mm/N 0,12
BL T*m 8,8
Qts 0,52
Qes 0,55
Qms 7,4
Spl dB 100
Electro-acoustic Specs
Physical Specs
SV 200.1
A 208 mm 8.19 in.
B 182,7 mm 7.19 in.
C 96,2 mm 3.79 in.
D 83,8 mm 3.3 in.
Frequency response
SV 200.1
