DPower 1
Liên hệ đặt hàng nhanh chóng qua
| Channels | 1 |
| Power supply voltage / fuse: | 11 ÷ 15 VDC / 1 x 20 A |
| Idling current (power ON/OFF) | 1 A / 0.04 mA |
| Consumption @ 2Ω, 14.4 VDC (Max Musical Power): | 20 A |
| Remote In: | 4 ÷ 15 VDC - 1 mA |
| ART™: | Automatic Remote Turn-On/Off |
| Distortion - THD (100 Hz @ 4Ω): | 0.1 % |
| Bandwidth (-3 dB): | 10 ÷ 500 Hz |
| S/N Ratio (A weighted @ 1 V) | 105 dB |
| Damping factor (100 Hz @ 4Ω) | 100 |
| Pre-In sensitivity: | LO: 0.2 ÷ 5 V HI: 0.8 ÷ 20 V |
| Load impedance (MIN) | 2Ω |
| Max size (mm/inches): | 222,2 x 160 x 50,5 / 8.75 x 6.3 x 1.99 |
| Weight (kg/lb): | 1.61 / 3.54 |
| Adjustable Crossovers | yes |
| Output Power (RMS) @ 14.4 VDC, THD 1%: | |
| 1 Ch 1 Ch | 150 W x 1 (4Ω) 250 W x 1 (2Ω) |
| Output Power (RMS) @ 14.4 VDC, THD 10%: | |
| 1 Ch 1 Ch | 180 W x 1 (4Ω) 300 W x 1 (2Ω) |
| Total Power | 300 W |
| Inputs: | PRE IN / SPEAKER IN |
| Pre out FULL range | Yes |
| Filters FULL: | Yes |
| Lo-Pass: | 50 ÷ 220 Hz @ 12 dB/Oct |
| BOOST 45 Hz: | 0 ÷ 12 dB |
| Remote Volume Control: (optional) | (-20 ÷ 6) dB |
| mm | in | |
| A | 222,2 | 8.75 |
| B | 210,50 | 8.29 |
| C | 160 | 6.3 |
| D | 142 | 5.59 |
| E | 50,50 | 1.99 |
The remote control HRC BM – Bass Management, optional for DPower 1, provides the ability to adapt the subwoofer level (-20 / + 6 dB) to any personal preference and favorite music genre.
Excellent for OEM systems upgrade, the DPower amplifiers are ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or in the factory amp area.
The efficient D class circuit delivers 600 W of maximum power within a compact chassis, an essential requirement for in-car integration.
DPower1 bass boost function enhances 45 Hz up to 12 dB to increase subwoofer punch.

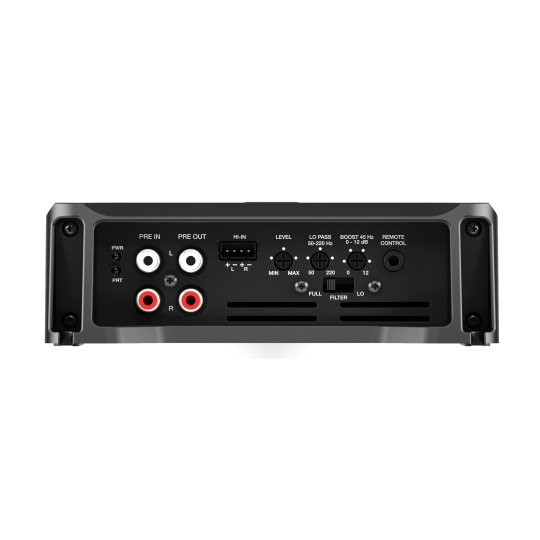

The double SPEAKER & RCA INPUTS allows the DPower amplifiers to connect to any type of source, be it OEM or aftermarket.
For an excellent integration with OEM systems the DPower amplifiers are equipped with a smart automated turn on and off circuit according to the factory radio.
