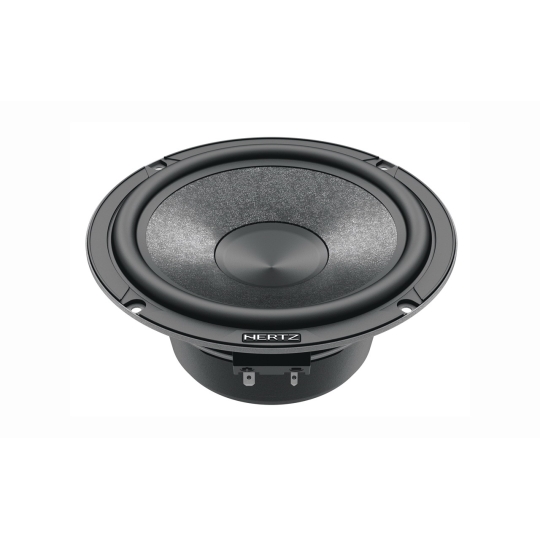

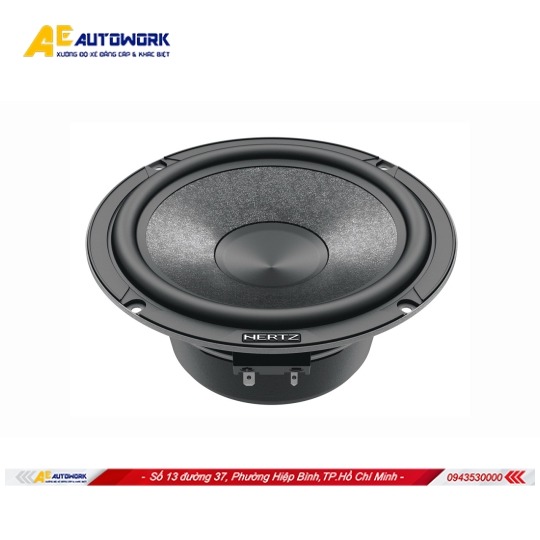

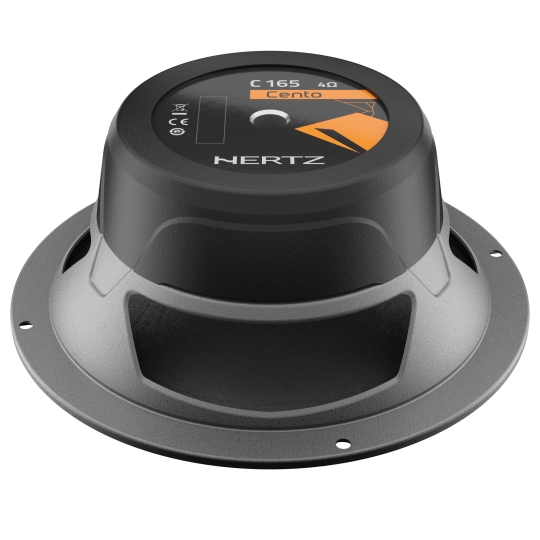

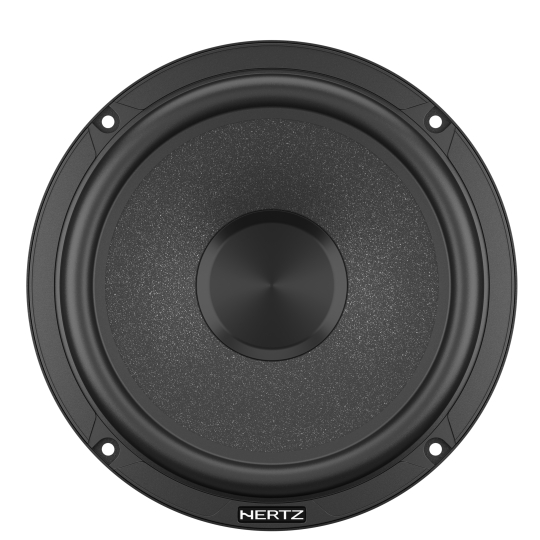

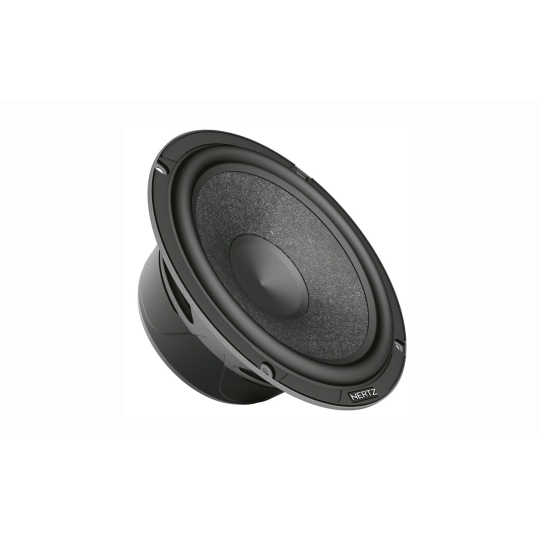

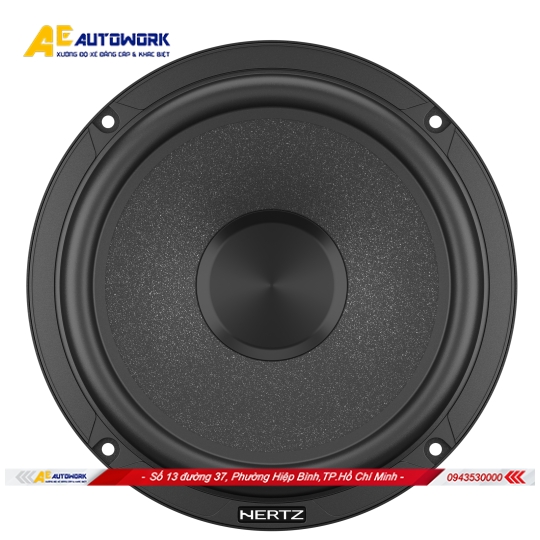

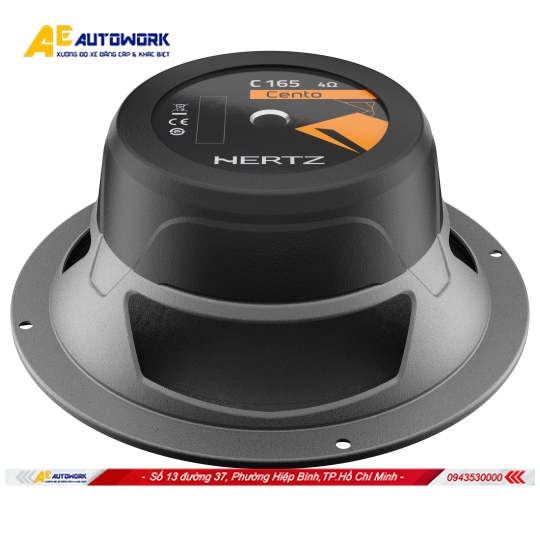

C 165
Liên hệ đặt hàng nhanh chóng qua
| Component | Woofer |
| Size mm (in.) | 165 (6.5) |
| Power Handling - Continuous W | 70 |
| Power Handling - Peak W | 210 |
| Impedance Ohm | 4 |
| Voice Coil Ø | 25 (1) |
| Frequency Response Hz | 55 ÷ 7k |
| Magnet size D x d x h mm (in.) | 85 x 32 x 15 (3.35 x 1.26 x 0.59) |
| Weight of one speaker kg (lb.) | 0,96 (2.12) |
| Magnet | High density flux ferrite |
| Cone | Semi-pressed paper+ Mica |
| Xmech mm (in.) | 4,9 (0.19) |
| D mm | 131,5 |
| Re Ohm | 3,2 |
| Fs Hz | 60 |
| Le mH | 0,2 |
| Vas I | 13,24 |
| Mms g | 13,9 |
| Cms mm/N | 0,51 |
| BL T*m | 4,9 |
| Qts | 0,59 |
| Qes | 0,69 |
| Qms | 3,9 |
| Spl dB | 93 |
| A | 165 mm | 6.5 in. |
| B | 142 mm | 5.59 in. |
| C | 71 mm | 2.8 in. |
| D | 62,5 mm | 2.46 in. |
| E | 171 mm | 6.73 in. |
| F | 24 mm | 0.94 in. |
1. 165 mm (6.5 in.) semi-pressed paper cone SPP-M (Semi Pressed PaperMica) enhanced with Mica powder for an excellent balance between lightness and damping.
2. High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
3. 25 mm (1 in.) voice coil featuring an aluminum former to guarantee high excursion and power handling.
4. Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
5. Optional elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.
SPP-M (Semi Pressed Paper-Mica) cone enhanced with Mica powder for an excellent balance between lightness and damping.
